Shop Efficient System 4 Aircons

Product Description

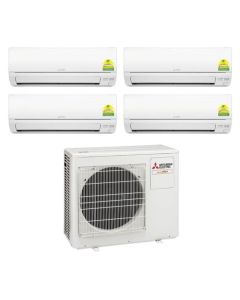

The Mitsubishi System 4 Aircon offers exceptional cooling performance for large homes or offices. With its energy-efficient design and quiet operation, it provides a comfortable environment while saving on energy costs. Its sleek, compact design ensures it fits seamlessly into any space.

Key Features

• Energy Efficient: Designed with advanced technology for superior energy efficiency, reducing electricity costs.
• Quiet Operation: Operates quietly, ensuring a peaceful environment in your home or office.
• Multi-Room Cooling: Capable of cooling multiple rooms simultaneously, perfect for large spaces.
• Compact Design: Sleek and compact design that fits seamlessly into any space.
• Advanced Airflow: Optimized airflow for consistent and comfortable cooling.
• Durable Build: Built with high-quality materials for long-lasting performance.

Product Specifications

• MXY-4H33VG
  • Capacity (Min-Max): 6.9 (1.3-10.7) kW
  • Power Input: 1.42 kW
  • Starting Current: 6.37 A
  • Running Current: 6.37 A
  • Airflow: 38.7 CMM (m³/min)
  • Dimension (WxDxH): 840x330x710 mm
  • Net Weight: 56 kg
  • Outdoor Sound Level: 49 dB(A)
  • Connection Method (Indoor/Outdoor): Flared
  • External Piping - Gas Diameter: 1 no X 12.70 mm + 3 no X 9.52 mm
  • External Piping - Liquid Diameter: 4 no X 6.35 mm
  • Max Piping Length (Each): 25 m
  • Max Piping Length (Total): 70 m
  • Max Height Difference: 15 m
  • Refrigerant: R32
  • Power Supply: 230 V, 1 Phase, 50 Hz
  • Pre-charged Refrigerant Quantity (Max): 1.85 kg
  • No. of Connectable Indoor Units: 4
  • Energy Labelling Scheme: i714/2646 kWh
• MSXY-FP24VG
  • Rated Capacity: 7.1 kW
  • Power Input: 0.069 kW
  • Running Current: 0.60 A
  • Airflow Rate: 9.3-11.1-13.7-16.1-20.0 CMM (m³/min)
  • Sound Level: 30-35-41-45-50 dB(A)
  • Dimension (WxDxH): 923x250x305 mm
  • Net Weight: 13 kg
  • External Piping - Gas Diameter: 12.70 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP10VG
  • Rated Capacity: 2.8 kW
  • Power Input: 0.028 kW
  • Running Current: 0.27 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-12.9 CMM (m³/min)
  • Sound Level: 19-24-29-36-45 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm

Ideal For

This Mitsubishi System 4 Aircon is ideal for large homes or offices that require efficient cooling across multiple rooms. Perfect for those who value energy efficiency and quiet operation.

In the Box

• Outdoor Unit: MXY-4H33VG
• Indoor Units: 3x MSXY-FP10VG, 1x MSXY-FP24VG

Product Description

The Mitsubishi System 4 Aircon offers a comprehensive cooling solution for homes with multiple rooms. Featuring energy-efficient technology and quiet operation, it ensures comfort without compromising on performance.

Key Features

• Energy Efficient: Utilizes R32 refrigerant for lower environmental impact and high efficiency.
• Quiet Operation: Designed to operate with minimal noise, ensuring a peaceful environment.
• Flexible Installation: Supports up to 4 indoor units, perfect for multi-room setups.
• Advanced Airflow: Adjustable airflow rates for optimal comfort in any room size.
• Compact Design: Space-saving dimensions for easy installation in various locations.
• Reliable Performance: High COP values ensure consistent cooling performance.

Product Specifications

• MXY-4H33VG
  • Capacity (Min-Max): 6.9 (1.3-10.7) kW
  • Power Input: 1.42 kW
  • Starting Current: 6.37 A
  • Running Current: 6.37 A
  • Airflow: 38.7 CMM (m³/min)
  • Dimension (WxDxH): 840x330x710 mm
  • Net Weight: 56 kg
  • Outdoor Sound Level: 49 dB(A)
  • Connection Method (Indoor/Outdoor): Flared
  • External Piping - Gas Diameter: 1noX12.70mm + 3noX9.52mm
  • External Piping - Liquid Diameter: 4noX6.35mm
  • Max Piping Length (Each): 25 m
  • Max Piping Length (Total): 70 m
  • Max Height Difference: 15 m
  • Refrigerant: R32
  • Power Supply: 230V, 1 Phase, 50Hz
  • Pre-charged Refrigerant Quantity (Max): 1.85 kg
  • No. of Connectable Indoor Units: 4
  • Energy Labelling Scheme: i714/2646 kWh
• MSXY-FP18VG
  • Rated Capacity: 5.0 kW
  • Power Input: 0.042 kW
  • Running Current: 0.38 A
  • Airflow Rate: 6.2-7.7-9.5-12.1-14.8 CMM (m³/min)
  • Sound Level: 28-33-38-44-49 dB(A)
  • Dimension (WxDxH): 923x250x305 mm
  • Net Weight: 13 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP13VG
  • Rated Capacity: 3.5 kW
  • Power Input: 0.036 kW
  • Running Current: 0.33 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-14.1 CMM (m³/min)
  • Sound Level: 19-24-30-36-47 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm

Ideal For

This Mitsubishi System 4 Aircon is ideal for homeowners seeking efficient cooling solutions for multiple rooms. Perfect for those who value energy efficiency and quiet operation.

In the Box

• Outdoor Unit: MXY-4H33VG
• Indoor Units: 3x MSXY-FP13VG, 1x MSXY-FP18VG

Product Description

The Mitsubishi System 4 Aircon offers a comprehensive cooling solution for your home. With its advanced inverter technology, it ensures efficient energy use and consistent temperature control across multiple rooms. Ideal for families, it combines quiet operation with powerful performance, making it a top choice for modern living spaces.

Key Features

• Efficient Cooling: Provides optimal cooling with a capacity range of 6.9kW to 10.7kW, perfect for large spaces.
• Energy Saving: Features a power input of 1.42kW, ensuring lower energy consumption and cost savings.
• Quiet Operation: Operates at a low sound level of 49dB(A) for a peaceful environment.
• Flexible Installation: Allows a maximum piping length of 70m, accommodating various installation needs.
• Advanced Refrigerant: Utilizes R32 refrigerant for eco-friendly and efficient cooling.
• Multiple Indoor Units: Supports up to 4 indoor units, ideal for multi-room cooling.

Product Specifications

• MXY-4H33VG
  • Capacity (Min-Max): 6.9 (1.3-10.7) kW
  • Power Input: 1.42 kW
  • Starting Current: 6.37 A
  • Running Current: 6.37 A
  • Airflow: 38.7 CMM (m³/min)
  • Dimension (WxDxH): 840x330x710 mm
  • Net Weight: 56 kg
  • Outdoor Sound Level: 49 dB(A)
  • Connection Method (Indoor/Outdoor): Flared
  • External Piping - Gas Diameter: 1 no X 12.70 mm + 3 no X 9.52 mm
  • External Piping - Liquid Diameter: 4 no X 6.35 mm
  • Max Piping Length (Each): 25 m
  • Max Piping Length (Total): 70 m
  • Max Height Difference: 15 m
  • Refrigerant: R32
  • Power Supply: 230V, 1 Phase, 50Hz
  • Pre-charged Refrigerant Quantity (Max): 1.85 kg
  • No. of Connectable Indoor Units: 4
• MSXY-FP20VG
  • Rated Capacity: 6.0 kW
  • Power Input: 0.059 kW
  • Running Current: 0.52 A
  • Airflow Rate: 9.3-11.1-13.7-16.1-20.0 CMM (m³/min)
  • Sound Level: 30-35-41-45-50 dB(A)
  • Dimension (WxDxH): 923x250x305 mm
  • Net Weight: 13 kg
  • External Piping - Gas Diameter: 12.70 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP13VG
  • Rated Capacity: 3.5 kW
  • Power Input: 0.036 kW
  • Running Current: 0.33 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-14.1 CMM (m³/min)
  • Sound Level: 19-24-30-36-47 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm

Ideal For

This Mitsubishi System 4 Aircon is ideal for homeowners seeking efficient cooling solutions for multiple rooms. Perfect for families or shared living spaces, ensuring comfort and energy savings.

In the Box

• Outdoor Unit: MXY-4H33VG
• Indoor Units: 3x MSXY-FP13VG
• Indoor Unit: 1x MSXY-FP20VG

Product Description

The Mitsubishi System 4 Aircon offers a perfect blend of efficiency and performance, ideal for cooling multiple rooms with ease. Its advanced inverter technology ensures energy savings, while the sleek design complements any interior.

Key Features

• Energy Efficient: Equipped with advanced inverter technology for reduced energy consumption.
• Quiet Operation: Low noise levels ensure a peaceful environment.
• Compact Design: Sleek and modern design fits seamlessly into any space.
• Powerful Cooling: High capacity cooling for quick temperature control.
• Durable Build: Built to withstand various weather conditions.
• Easy Installation: Simple setup with flexible piping options.

Product Specifications

• MXY-4H33VG
  • Capacity (Min-Max): 6.9 (1.3-10.7) kW
  • Power Input: 1.42 kW
  • Starting Current: 6.37 A
  • Running Current: 6.37 A
  • Airflow: 38.7 CMM (m³/min)
  • Dimension (WxDxH): 840x330x710 mm
  • Net Weight: 56 kg
  • Outdoor Sound Level: 49 dB(A)
  • Connection Method (Indoor/Outdoor): Flared
  • External Piping - Gas Diameter: 1no X 12.70 mm + 3no X 9.52 mm
  • External Piping - Liquid Diameter: 4no X 6.35 mm
  • Max Piping Length (Each): 25 m
  • Max Piping Length (Total): 70 m
  • Max Height Difference: 15 m
  • Refrigerant: R32
  • Power Supply: 230V, 1 Phase, 50Hz
  • Pre-charged Refrigerant Quantity (Max): 1.85 kg
  • No. of Connectable Indoor Units: 4
  • Energy Labelling Scheme: i714/2646 kWh
• MSXY-FP13VG
  • Rated Capacity: 3.5 kW
  • Power Input: 0.036 kW
  • Running Current: 0.33 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-14.1 CMM (m³/min)
  • Sound Level: 19-24-30-36-47 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP24VG
  • Rated Capacity: 7.1 kW
  • Power Input: 0.069 kW
  • Running Current: 0.60 A
  • Airflow Rate: 9.3-11.1-13.7-16.1-20.0 CMM (m³/min)
  • Sound Level: 30-35-41-45-50 dB(A)
  • Dimension (WxDxH): 923x250x305 mm
  • Net Weight: 13 kg
  • External Piping - Gas Diameter: 12.70 mm
  • External Piping - Liquid Diameter: 6.35 mm

Ideal For

This Mitsubishi System 4 Aircon is ideal for homeowners seeking efficient cooling solutions for multiple rooms. Perfect for families or small offices looking for reliable and energy-efficient air conditioning.

In the Box

• Outdoor Unit: MXY-4H33VG
• Indoor Units: 3x MSXY-FP13VG
• Indoor Unit: 1x MSXY-FP24VG

Product Description

The Mitsubishi System 4 Aircon MXY-4H33VG/4XMSXY-FP10VG offers a perfect blend of energy efficiency and powerful cooling. Ideal for both residential and commercial spaces, it ensures quiet operation and flexible installation options.

Key Features

• Energy Efficient: Designed to achieve industry's leading seasonal energy efficiency with advanced technology.

• Quiet Operation: Enjoy a peaceful environment with sound levels as low as 19 dB(A).

• Compact Design: Space-saving design with dimensions of 799x232x290mm for indoor units.

• Powerful Cooling: Rated capacity of 2.8kW ensures effective cooling even in larger spaces.

• Flexible Installation: Supports multiple indoor units for versatile cooling solutions.

• Durable Build: High-performance compressor ensures long-lasting reliability.

Product Specifications

• MSXY-FP10VG

  • Rated Capacity: 2.8kW

  • Power Input: 0.028kW

  • Running Current: 0.27A

  • Airflow Rate: 4.1-5.1-6.3-9.1-12.9 CMM (m³/min)

  • Sound Level: 19-24-29-36-45 dB(A)

  • Dimension (WxDxH): 799x232x290 mm

  • Net Weight: 9 kg

  • External Piping - Gas Diameter: 9.52 mm

  • External Piping - Liquid Diameter: 6.35 mm

• MXY-4H33VG

  • Capacity (Min-Max): 6.9 (1.3-10.7) kW

  • Power Input: 1.42 kW

  • Full Load COP: 4.86

  • Weighted COP: 5.76

  • Running Current: 6.37 A

  • Airflow: 38.7 CMM (m³/min)

  • Dimension (WxDxH): 840x330x710 mm

  • Net Weight: 55 kg

  • Outdoor Sound Level: 49 dB(A)

  • External Piping - Gas Diameter: 1noX12.7+3noX9.52 mm

  • External Piping - Liquid Diameter: 4noX6.35 mm

Ideal For

This Mitsubishi System 4 Aircon is ideal for homes and offices looking for efficient cooling solutions. Perfect for those who value energy efficiency and quiet operation.

In the Box

• Outdoor Unit: MXY-4H33VG

• Indoor Units: 4x MSXY-FP10VG

Product Description

The Mitsubishi System 4 Aircon Mxy-4h33vg/4xmsxy-fp13vg offers exceptional cooling performance with its advanced inverter technology. Ideal for large spaces, it ensures energy efficiency and quiet operation, making it a perfect choice for homes and offices.

Key Features

• Energy Efficient: Utilizes advanced inverter technology to reduce energy consumption and lower electricity bills.
• Quiet Operation: Designed to operate quietly, ensuring a peaceful environment in your home or office.
• Compact Design: Sleek and modern design that fits seamlessly into any space without compromising on performance.
• Powerful Cooling: Capable of cooling large areas quickly and efficiently, maintaining a comfortable temperature.
• Easy Installation: Features a user-friendly setup process, making it easy to install and start using immediately.
• Durable Build: Built with high-quality materials to ensure longevity and reliable performance.

Product Specifications

• MXY-4H33VG
  • Capacity (Min-Max): 6.9 (1.3-10.7) kW
  • Power Input: 1.42 kW
  • Starting Current: 6.37 A
  • Running Current: 6.37 A
  • Airflow: 38.7 CMM (m³/min)
  • Dimension (WxDxH): 840x330x710 mm
  • Net Weight: 56 kg
  • Outdoor Sound Level: 49 dB(A)
  • Connection Method (Indoor/Outdoor): Flared
  • External Piping - Gas Diameter: 1noX12.70mm + 3noX9.52mm
  • External Piping - Liquid Diameter: 4noX6.35mm
  • Max Piping Length (Each): 25 m
  • Max Piping Length (Total): 70 m
  • Max Height Difference: 15 m
  • Refrigerant: R32
  • Power Supply: 230V, 1 Phase, 50Hz
  • Pre-charged Refrigerant Quantity (Max): 1.85 kg
  • No. of Connectable Indoor Units: 4
  • Energy Labelling Scheme: i714/2646 kWh
• MSXY-FP13VG
  • Rated Capacity: 3.5 kW
  • Power Input: 0.036 kW
  • Running Current: 0.33 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-14.1 CMM (m³/min)
  • Sound Level: 19-24-30-36-47 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm

Ideal For

The Mitsubishi System 4 Aircon is ideal for large homes or offices that require efficient cooling across multiple rooms. Perfect for those seeking energy-efficient solutions with advanced technology.

In the Box

• Outdoor Unit: MXY-4H33VG
• Indoor Units: 4x MSXY-FP13VG

Product Description

The Mitsubishi System 4 Aircon offers a powerful cooling solution for large spaces. With its energy-efficient R32 refrigerant and quiet operation, it ensures comfort without compromising on performance.

Key Features

• Energy Efficient: Utilizes R32 refrigerant for superior energy efficiency.
• Quiet Operation: Designed to operate with minimal noise, ensuring a peaceful environment.
• Flexible Installation: Supports up to 4 indoor units, perfect for multi-room setups.
• Advanced Airflow: Optimized airflow rates for consistent cooling.
• Compact Design: Space-saving dimensions for easy installation.
• Reliable Performance: High-performance compressor for long-lasting reliability.

Product Specifications

• MXY-4H38VG
  • Capacity (Min-Max): 8.0 (1.4-11.6) kW
  • Power Input: 1.62 kW
  • Starting Current: 7.22 A
  • Running Current: 7.22 A
  • Airflow: 59.2 CMM (m³/min)
  • Dimension (WxDxH): 950x330x796 mm
  • Net Weight: 58 kg
  • Connection Method (Indoor/Outdoor): Flared
  • External Piping - Gas Diameter: 1noX12.70mm + 3noX9.52mm
  • External Piping - Liquid Diameter: 4noX6.35mm
  • Max Piping Length (Each): 25 m
  • Max Piping Length (Total): 70 m
  • Max Height Difference: 15 m
  • Refrigerant: R32
  • Power Supply: 230V, 1 Phase, 50Hz
  • Pre-charged Refrigerant Quantity (Max): 2.00 kg
  • No. of Connectable Indoor Units: 4
  • Energy Labelling Scheme: 1790/2926 kWh
• MSXY-FP24VG
  • Rated Capacity: 7.1 kW
  • Power Input: 0.069 kW
  • Running Current: 0.60 A
  • Airflow Rate: 9.3-11.1-13.7-16.1-20.0 CMM (m³/min)
  • Sound Level: 30-35-41-45-50 dB(A)
  • Dimension (WxDxH): 923x250x305 mm
  • Net Weight: 13 kg
  • External Piping - Gas Diameter: 12.70 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP13VG
  • Rated Capacity: 3.5 kW
  • Power Input: 0.036 kW
  • Running Current: 0.33 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-14.1 CMM (m³/min)
  • Sound Level: 19-24-30-36-47 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP10VG
  • Rated Capacity: 2.8 kW
  • Power Input: 0.028 kW
  • Running Current: 0.27 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-12.9 CMM (m³/min)
  • Sound Level: 19-24-29-36-45 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm

Ideal For

This Mitsubishi System 4 Aircon is ideal for large homes or offices needing efficient cooling solutions. Perfect for those who value energy efficiency and quiet operation.

In the Box

• Outdoor Unit: MXY-4H38VG
• Indoor Units: 1x MSXY-FP10VG, 1x MSXY-FP13VG, 1x MSXY-FP18VG, 1x MSXY-FP24VG

Product Description

The Mitsubishi System 4 Aircon offers a comprehensive cooling solution with its multiple indoor units and efficient outdoor unit. Ideal for homes with diverse cooling needs, it combines energy efficiency, quiet operation, and advanced technology to deliver superior comfort.

Key Features

• Energy Efficient: Designed with advanced technology to ensure high seasonal energy efficiency, saving on electricity bills.
• Quiet Operation: Enjoy a peaceful environment with low noise levels, perfect for bedrooms and living rooms.
• Flexible Installation: Suitable for various room sizes with multiple indoor units for customized cooling.
• Durable Build: Built to last with high-quality materials and robust construction.
• Advanced Airflow: Optimized airflow design for even cooling distribution across the room.
• Environmentally Friendly: Uses R32 refrigerant, which is more eco-friendly and efficient.

Product Specifications

• MXY-4H38VG
  • Capacity (Min-Max): 8.0 (1.4-11.6) kW
  • Power Input: 1.62 kW
  • Starting Current: 7.22 A
  • Running Current: 7.22 A
  • Airflow: 59.2 CMM (m³/min)
  • Dimension (WxDxH): 950x330x796 mm
  • Net Weight: 58 kg
  • Connection Method (Indoor/Outdoor): Flared
  • External Piping - Gas Diameter: 1 no X 12.70 mm + 3 no X 9.52 mm
  • External Piping - Liquid Diameter: 4 no X 6.35 mm
  • Max Piping Length (Each): 25 m
  • Max Piping Length (Total): 70 m
  • Max Height Difference: 15 m
  • Refrigerant: R32
  • Power Supply: 230V, 1 Phase, 50Hz
  • Pre-charged Refrigerant Quantity (Max): 2.00 kg
  • No. of Connectable Indoor Units: 4
• MSXY-FP10VG
  • Rated Capacity: 2.8 kW
  • Power Input: 0.028 kW
  • Running Current: 0.27 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-12.9 CMM (m³/min)
  • Sound Level: 19-24-29-36-45 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP13VG
  • Rated Capacity: 3.5 kW
  • Power Input: 0.036 kW
  • Running Current: 0.33 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-14.1 CMM (m³/min)
  • Sound Level: 19-24-30-36-47 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP18VG
  • Rated Capacity: 5.0 kW
  • Power Input: 0.042 kW
  • Running Current: 0.38 A
  • Airflow Rate: 6.2-7.7-9.5-12.1-14.8 CMM (m³/min)
  • Sound Level: 28-33-38-44-49 dB(A)
  • Dimension (WxDxH): 923x250x305 mm
  • Net Weight: 13 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm

Ideal For

This Mitsubishi System 4 Aircon is ideal for homeowners seeking efficient and reliable cooling solutions for multiple rooms. Perfect for families or individuals who value energy efficiency and quiet operation.

In the Box

• Outdoor Unit: MXY-4H38VG
• Indoor Units: 1x MSXY-FP10VG, 1x MSXY-FP13VG, 2x MSXY-FP18VG

Product Description

The Mitsubishi System 4 Aircon MXY-4H38VG/1XMSXY-FP10VG/2XMSXY-FP13VG/1XMSXY-FP18 is a top-tier air conditioning solution designed for those who demand efficiency and versatility. With the ability to connect up to four indoor units, it offers flexible cooling for multiple rooms. Its use of R32 refrigerant ensures energy efficiency, while the compact design allows for easy installation in various spaces. Experience quiet operation and customizable airflow, making it perfect for any home environment.

Key Features

• High Capacity Cooling: With a capacity range of 8.0 kW, this system ensures efficient cooling for larger spaces.
• Energy Efficient: Utilizes R32 refrigerant and advanced technologies to achieve leading seasonal energy efficiency.
• Quiet Operation: Indoor units operate at sound levels as low as 19 dB(A), ensuring a peaceful environment.
• Compact Design: Space-saving dimensions make it easy to install in various room sizes.
• Multiple Indoor Units: Connects up to 4 indoor units, providing flexible cooling solutions for different rooms.
• Advanced Airflow Control: Offers adjustable airflow rates to suit your comfort needs.

Product Specifications

MXY-4H38VG

• Capacity (Min-Max): 8.0 (1.4-11.6) kW
• Power Input: 2.00 kW
• Starting Current: 7.22 A
• Running Current: 4.88 A
• Airflow: 59.2 CMM (m³/min)
• Dimension (WxDxH): 950 x 330 x 796 mm
• Net Weight: 58 kg
• Outdoor Sound Level: Not Specified
• Connection Method (Indoor/Outdoor): Flared
• External Piping - Gas Diameter: 1 no X 12.7 mm + 3 no X 9.52 mm
• External Piping - Liquid Diameter: 4 no X 6.35 mm
• Max Length (Each): 25 m
• Max Length: 70 m
• Max Height Difference: 15 m
• Refrigerant: R32
• Power Supply: 230 V, 1 Phase, 50 Hz
• Pre-charged Refrigerant Quantity (Max): 2.00 kg (2.00 kg)
• No. of Connectable Indoor Units: 4
• Energy Labelling Scheme: 1790/2926 kWh

MSXY-FP10VG

• Rated Capacity: 2.8 kW
• Power Input: 0.028 kW
• Sound Level: 19-24-29-36-45 dB(A)
• Dimension (WxDxH): 799 x 232 x 290 mm
• Net Weight: 9 kg
• External Piping - Gas Diameter: 9.52 mm
• External Piping - Liquid Diameter: 6.35 mm

MSXY-FP13VG

• Rated Capacity: 6.5 kW
• Sound Level: 19-24-30-36-47 dB(A)
• Dimension (WxDxH): 799 x 232 x 290 mm
• Net Weight: 9 kg
• External Piping - Gas Diameter: 9.52 mm
• External Piping - Liquid Diameter: 6.35 mm

MSXY-FP18VG

• Rated Power Input: 0.042 kW
• Running Current: 7.22 A
• Airflow: 59.2 CMM (m³/min)
• Sound Level: 28-33-38-44-49 dB(A)
• Dimension (WxDxH): 923 x 250 x 305 mm
• Net Weight: 13 kg
• External Piping - Gas Diameter: 9.52 mm
• External Piping - Liquid Diameter: 6.35 mm

Ideal For

This Mitsubishi System 4 Aircon is ideal for homeowners seeking efficient and powerful cooling solutions for multiple rooms. Perfect for families and individuals who value energy efficiency and advanced technology in their air conditioning systems.

In the Box

• Outdoor Unit: MXY-4H38VG
• Indoor Units: 1x MSXY-FP10VG, 2x MSXY-FP13VG, 1x MSXY-FP18VG

Product Description

The Mitsubishi System 4 Aircon Mxy-4h38vg/1xmsxy-fp10vg/2xmsxy-fp13vg/1xmsxy-fp20 is a top-of-the-line air conditioning solution for both homes and offices. With its high cooling capacity and energy-efficient R32 refrigerant, it ensures a comfortable environment while keeping energy costs low. Designed for quiet operation, it is perfect for maintaining a peaceful atmosphere. The system includes multiple indoor units, making it ideal for cooling multiple rooms efficiently.

Key Features

• High Capacity: Offers a powerful cooling capacity of up to 6.9 kW, perfect for large spaces.
• Energy Efficient: Equipped with R32 refrigerant and a high energy efficiency ratio, ensuring lower electricity bills.
• Quiet Operation: Enjoy a peaceful environment with sound levels as low as 19 dB(A).
• Flexible Airflow: Adjustable airflow rates ranging from 4.1 to 20.0 CMM for customized comfort.
• Compact Design: Sleek dimensions fit various room sizes without compromising on style.
• Advanced Technology: Features Mitsubishi's reliable technology for consistent and efficient cooling performance.

Product Specifications

• MXY-4H38VG
  • Capacity (Min-Max): 8.0 (1.4-11.6) kW
  • Power Input: 1.62 kW
  • Starting Current: 7.22 A
  • Running Current: 7.22 A
  • Airflow: 59.2 CMM (m³/min)
  • Dimension (WxDxH): 950x330x796 mm
  • Net Weight: 58 kg
  • Connection Method (Indoor/Outdoor): Flared
  • External Piping - Gas Diameter: 1noX12.70mm + 3noX9.52mm
  • External Piping - Liquid Diameter: 4noX6.35mm
  • Max Piping Length (Each): 25 m
  • Max Piping Length (Total): 70 m
  • Max Height Difference: 15 m
  • Refrigerant: R32
  • Power Supply: 230V, 1 Phase, 50Hz
  • Pre-charged Refrigerant Quantity (Max): 2.00 kg
  • No. of Connectable Indoor Units: 4
• MSXY-FP10VG
  • Rated Capacity: 2.8 kW
  • Power Input: 0.028 kW
  • Running Current: 0.27 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-12.9 CMM (m³/min)
  • Sound Level: 19-24-29-36-45 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP13VG
  • Rated Capacity: 3.5 kW
  • Power Input: 0.036 kW
  • Running Current: 0.33 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-14.1 CMM (m³/min)
  • Sound Level: 19-24-30-36-47 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP20VG
  • Rated Capacity: 6.0 kW
  • Power Input: 0.059 kW
  • Running Current: 0.52 A
  • Airflow Rate: 9.3-11.1-13.7-16.1-20.0 CMM (m³/min)
  • Sound Level: 30-35-41-45-50 dB(A)
  • Dimension (WxDxH): 923x250x305 mm
  • Net Weight: 13 kg
  • External Piping - Gas Diameter: 12.70 mm
  • External Piping - Liquid Diameter: 6.35 mm

Ideal For

The Mitsubishi System 4 Aircon is ideal for those looking to efficiently cool multiple rooms with a single outdoor unit. Perfect for homes or offices seeking a reliable and energy-efficient air conditioning solution.

In the Box

• Outdoor Unit: MXY-4H38VG
• Indoor Units: 1x MSXY-FP10VG, 2x MSXY-FP13VG, 1x MSXY-FP20VG

Product Description

The Mitsubishi System 4 Air Conditioner offers a comprehensive cooling solution for your home. With its energy-efficient R32 refrigerant, powerful cooling capabilities, and quiet operation, it ensures comfort and savings. Its sleek design and advanced technology make it a perfect fit for modern homes.

Key Features

• Energy Efficient: Uses R32 refrigerant for reduced environmental impact and high energy efficiency.
• Powerful Cooling: Offers a wide range of cooling capacities to suit different room sizes and needs.
• Quiet Operation: Designed to operate quietly, ensuring a peaceful environment.
• Compact Design: Sleek and compact units that fit seamlessly into any home decor.
• Advanced Technology: Features high-performance compressors for optimal cooling.
• Flexible Installation: Multiple indoor units can be connected to a single outdoor unit, offering flexibility in installation.

Product Specifications

• MXY-4H38VG
  • Capacity (Min-Max): 8.0 (1.4-11.6) kW
  • Power Input: 1.62 kW
  • Starting Current: 7.22 A
  • Running Current: 7.22 A
  • Airflow: 59.2 CMM (m³/min)
  • Dimension (WxDxH): 950x330x796 mm
  • Net Weight: 58 kg
  • Connection Method (Indoor/Outdoor): Flared
  • External Piping - Gas Diameter: 1noX12.70mm + 3noX9.52mm
  • External Piping - Liquid Diameter: 4noX6.35mm
  • Max Piping Length (Each): 25 m
  • Max Piping Length (Total): 70 m
  • Max Height Difference: 15 m
  • Refrigerant: R32
  • Power Supply: 230V, 1 Phase, 50Hz
  • Pre-charged Refrigerant Quantity (Max): 2.00 kg
  • No. of Connectable Indoor Units: 4
  • Energy Labelling Scheme: 1790/2926 kWh
• MSXY-FP24VG
  • Rated Capacity: 7.1 kW
  • Power Input: 0.069 kW
  • Running Current: 0.60 A
  • Airflow Rate: 9.3-11.1-13.7-16.1-20.0 CMM (m³/min)
  • Sound Level: 30-35-41-45-50 dB(A)
  • Dimension (WxDxH): 923x250x305 mm
  • Net Weight: 13 kg
  • External Piping - Gas Diameter: 12.70 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP13VG
  • Rated Capacity: 3.5 kW
  • Power Input: 0.036 kW
  • Running Current: 0.33 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-14.1 CMM (m³/min)
  • Sound Level: 19-24-30-36-47 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP10VG
  • Rated Capacity: 2.8 kW
  • Power Input: 0.028 kW
  • Running Current: 0.27 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-12.9 CMM (m³/min)
  • Sound Level: 19-24-29-36-45 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm

Ideal For

This Mitsubishi System 4 Air Conditioner is ideal for homeowners looking for efficient cooling solutions for multiple rooms. Perfect for families or individuals who desire comfort and energy savings.

In the Box

• Outdoor Unit: MXY-4H38VG
• Indoor Units: 1x MSXY-FP10VG, 2x MSXY-FP13VG, 1x MSXY-FP24VG

Product Description

The Mitsubishi System 4 Aircon offers a perfect blend of efficiency and comfort, featuring advanced inverter technology and eco-friendly R32 refrigerant. Ideal for cooling multiple rooms, it ensures quiet operation and clean air with its innovative filtration system.

Key Features

• Energy Efficiency: Equipped with inverter technology, this aircon adjusts cooling capacity for optimal energy savings.
• Quiet Operation: Enjoy a peaceful environment with noise levels as low as 19dB.
• Eco-Friendly Refrigerant: Utilizes R32 refrigerant, reducing environmental impact and enhancing cooling efficiency.
• Advanced Filtration: Features PM 2.5 filter and Dual Barrier Coating for cleaner air.
• Easy Maintenance: Designed with a detachable panel for hassle-free cleaning.
• Comprehensive Warranty: Comes with a 1-year parts warranty and 5-year compressor warranty.

Product Specifications

• MXY-4H38VG
  • Capacity (Min-Max): 8.0 (1.4-11.6) kW
  • Power Input: 1.62 kW
  • Starting Current: 7.22 A
  • Running Current: 7.22 A
  • Airflow: 59.2 CMM (m³/min)
  • Dimension (WxDxH): 950x330x796 mm
  • Net Weight: 58 kg
  • Connection Method (Indoor/Outdoor): Flared
  • External Piping - Gas Diameter: 1noX12.70mm + 3noX9.52mm
  • External Piping - Liquid Diameter: 4noX6.35mm
  • Max Piping Length (Each): 25 m
  • Max Piping Length (Total): 70 m
  • Max Height Difference: 15 m
  • Refrigerant: R32
  • Power Supply: 230V, 1Phase, 50Hz
  • Pre-charged Refrigerant Quantity (Max): 2.00 kg
  • No. of Connectable Indoor Units: 4
  • Energy Labelling Scheme: 1790/2926 kWh
• MSXY-FP24VG
  • Rated Capacity: 7.1 kW
  • Power Input: 0.069 kW
  • Running Current: 0.60 A
  • Airflow Rate: 9.3-11.1-13.7-16.1-20.0 CMM (m³/min)
  • Sound Level: 30-35-41-45-50 dB(A)
  • Dimension (WxDxH): 923x250x305 mm
  • Net Weight: 13 kg
  • External Piping - Gas Diameter: 12.70 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP18VG
  • Rated Capacity: 5.0 kW
  • Power Input: 0.042 kW
  • Running Current: 0.38 A
  • Airflow Rate: 6.2-7.7-9.5-12.1-14.8 CMM (m³/min)
  • Sound Level: 28-33-38-44-49 dB(A)
  • Dimension (WxDxH): 923x250x305 mm
  • Net Weight: 13 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP10VG
  • Rated Capacity: 2.8 kW
  • Power Input: 0.028 kW
  • Running Current: 0.27 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-12.9 CMM (m³/min)
  • Sound Level: 19-24-29-36-45 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm

Ideal For

The Mitsubishi System 4 Aircon is ideal for homeowners seeking efficient cooling solutions for multiple rooms. Perfect for families or individuals who value energy efficiency and quiet operation in their living spaces.

In the Box

• Outdoor Unit: MXY-4H38VG
• Indoor Units: 1x MSXY-FP10VG, 2x MSXY-FP18VG, 1x MSXY-FP24VG

Product Description

The Mitsubishi System 4 Aircon MXY-4H38VG/1XMSXY-FP10VG/3XMSXY-FP13VG offers a perfect blend of efficiency and performance. Ideal for larger spaces, it ensures consistent cooling with its advanced technology and quiet operation, making it a top choice for both homes and offices.

Key Features

• High Efficiency: Enjoy superior cooling with a high energy efficiency rating, saving on electricity bills.
• Quiet Operation: Designed to operate quietly, ensuring a peaceful environment.
• Compact Design: Sleek and compact, it fits seamlessly into any room decor.
• Advanced Airflow: Optimized airflow for consistent cooling across the room.
• Durable Build: Built with high-quality materials for long-lasting performance.
• Easy Installation: Simple installation process with flexible piping options.

Product Specifications

• MXY-4H38VG
  • Capacity (Min-Max): 8.0 (1.4-11.6) kW
  • Power Input: 1.62 kW
  • Starting Current: 7.22 A
  • Running Current: 7.22 A
  • Airflow: 59.2 CMM (m³/min)
  • Dimension (WxDxH): 950x330x796 mm
  • Net Weight: 58 kg
  • Connection Method (Indoor/Outdoor): Flared
  • External Piping - Gas Diameter: 1noX12.70mm + 3noX9.52mm
  • External Piping - Liquid Diameter: 4noX6.35mm
  • Max Piping Length (Each): 25 m
  • Max Piping Length (Total): 70 m
  • Max Height Difference: 15 m
  • Refrigerant: R32
  • Power Supply: 230V, 1 Phase, 50Hz
  • Pre-charged Refrigerant Quantity (Max): 2.00 kg
  • No. of Connectable Indoor Units: 4
  • Energy Labelling Scheme: 1790/2926 kWh
• MSXY-FP10VG
  • Rated Capacity: 2.8 kW
  • Power Input: 0.028 kW
  • Running Current: 0.27 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-12.9 CMM (m³/min)
  • Sound Level: 19-24-29-36-45 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP13VG
  • Rated Capacity: 3.5 kW
  • Power Input: 0.036 kW
  • Running Current: 0.33 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-14.1 CMM (m³/min)
  • Sound Level: 19-24-30-36-47 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm

Ideal For

This Mitsubishi System 4 Aircon is ideal for those seeking efficient and powerful cooling solutions for larger spaces or multiple rooms. Perfect for homes or offices that require consistent and reliable air conditioning.

In the Box

• Outdoor Unit: MXY-4H38VG
• Indoor Units: 1x MSXY-FP10VG, 3x MSXY-FP13VG

Product Description

The Mitsubishi System 4 Air Conditioner offers a powerful cooling solution for multiple rooms. With its energy-efficient inverter technology, quiet operation, and advanced filtration system, it ensures comfort and clean air in your home.

Key Features

• Energy Efficient: Equipped with inverter technology, this air conditioner adjusts cooling capacity for optimal energy savings.
• Quiet Operation: Enjoy peace and quiet with sound levels as low as 19dB.
• Advanced Filtration: PM 2.5 filter ensures clean and healthy air circulation.
• Dual Barrier Coating: Protects against dust and oil build-up, ensuring longevity.
• Easy Maintenance: Features a detachable panel for hassle-free cleaning.
• Flexible Installation: Connects up to 4 indoor units for versatile cooling solutions.

Product Specifications

• MXY-4H38VG
  • Capacity (Min-Max): 8.0 (1.4-11.6) kW
  • Power Input: 1.62 kW
  • Starting Current: 7.22 A
  • Running Current: 7.22 A
  • Airflow: 59.2 CMM (m³/min)
  • Dimension (WxDxH): 950x330x796 mm
  • Net Weight: 58 kg
  • Refrigerant: R32
  • Power Supply: 230V, 1 Phase, 50Hz
  • No. of Connectable Indoor Units: 4
• MSXY-FP18VG
  • Rated Capacity: 5.0 kW
  • Power Input: 0.042 kW
  • Running Current: 0.38 A
  • Airflow Rate: 6.2-7.7-9.5-12.1-14.8 CMM (m³/min)
  • Sound Level: 28-33-38-44-49 dB(A)
  • Dimension (WxDxH): 923x250x305 mm
  • Net Weight: 13 kg
• MSXY-FP13VG
  • Rated Capacity: 3.5 kW
  • Power Input: 0.036 kW
  • Running Current: 0.33 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-14.1 CMM (m³/min)
  • Sound Level: 19-24-30-36-47 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
• MSXY-FP10VG
  • Rated Capacity: 2.8 kW
  • Power Input: 0.028 kW
  • Running Current: 0.27 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-12.9 CMM (m³/min)
  • Sound Level: 19-24-29-36-45 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg

Ideal For

This Mitsubishi System 4 Air Conditioner is ideal for homeowners seeking efficient cooling solutions for multiple rooms. Perfect for those who value quiet operation and energy efficiency.

In the Box

• Outdoor Unit: MXY-4H38VG
• Indoor Units: 2x MSXY-FP10VG, 1x MSXY-FP13VG, 1x MSXY-FP18VG
• Remote Controls
• Installation Manual
• Warranty Card

Product Description

The Mitsubishi System 4 Aircon MXY-4H38VG/2XMSXY-FP10VG/1XMSXY-FP13VG/1XMSXY-FP20 is a high-efficiency air conditioning solution perfect for homes and offices. With its advanced technology and high-performance compressor, it offers superior cooling while being energy efficient and quiet, making it an ideal choice for those seeking comfort and savings.

Key Features

• High Efficiency: The Mitsubishi System 4 Aircon offers industry-leading seasonal energy efficiency with advanced technologies and a high-performance compressor.

• Flexible Capacity: Features a variable capacity range from 1.4 to 11.6 kW, ensuring optimal cooling for different room sizes.

• Energy Saving: With a power input of just 1.62 kW, this air conditioner is designed to save energy while providing powerful cooling.

• Quiet Operation: Enjoy a peaceful environment with a sound level of just 49 dB(A), ensuring minimal noise disruption.

• Compact Design: The outdoor unit is compact with dimensions of 950 x 330 x 796 mm, making it easy to install in various spaces.

• Advanced Technology: Equipped with a high-performance compressor and R32 refrigerant for optimal energy efficiency.

Product Specifications

• MXY-4H38VG

  • Capacity (Min-Max): 8.0 (1.4-11.6) kW

  • Power Input: 1.62 kW

  • Starting Current: 7.22 A

  • Running Current: 7.22 A

  • Airflow: 8.0 CMM (m³/min)

  • Dimension: 950 x 330 x 796 mm

  • Connection Method (Indoor/Outdoor): Flared

  • External Piping - Gas Diameter: 1 no X 12.70 mm + 3 no X 9.52 mm

  • External Piping - Liquid Diameter: 4 no X 6.35 mm

  • Max Piping Length (Each): 25 m

  • Max Piping Length (Total): 70 m

  • Refrigerant: R32

  • Net Weight: 58 kg

  • Power Supply: 1790/2926 kWh

  • Number of Connectable Indoor Units: 4

• MSXY-FP10VG

  • Rated Capacity: 2.8 kW

  • Power Input: 0.028 kW

  • Running Current: 0.27 A

  • Airflow Rate: 4.1-5.1-6.3-9.5 CMM (m³/min)

  • Net Weight: 9 kg

  • External Piping - Gas Diameter: 9.52 mm

  • External Piping - Liquid Diameter: 6.35 mm

• MSXY-FP13VG

  • Rated Capacity: 3.5 kW

  • Power Input: 0.036 kW

  • Running Current: 0.33 A

  • Airflow Rate: 4.1-5.1-6.3-9.1 CMM (m³/min)

  • Net Weight: 9 kg

  • External Piping - Gas Diameter: 9.52 mm

  • External Piping - Liquid Diameter: 6.35 mm

• MSXY-FP20VG

  • Rated Capacity: 6.0 kW

  • Power Input: 0.059 kW

  • Running Current: 0.52 A

  • Airflow Rate: 9.3-11.1-13.7-16.1-20.0 CMM (m³/min)

  • Sound Level: 30-35-41-45-50 dB(A)

  • Dimension (WxDxH): 923x250x305 mm

  • Net Weight: 13 kg

  • External Piping - Gas Diameter: 12.70 mm

  • External Piping - Liquid Diameter: 6.35 mm

Ideal For

The Mitsubishi System 4 Aircon is ideal for homes and offices seeking efficient and reliable cooling solutions with multiple indoor units for different rooms.

In the Box

• Outdoor Unit: MXY-4H38VG

• Indoor Unit: 2x MSXY-FP10VG

• Indoor Unit: 1x MSXY-FP13VG

• Indoor Unit: 1x MSXY-FP20VG

Product Description

The Mitsubishi System 4 Aircon offers a powerful and efficient cooling solution for your home. With the ability to connect up to four indoor units, it ensures consistent climate control across multiple rooms. Its compact design and quiet operation make it an ideal choice for modern living spaces.

Key Features

• High Efficiency: Achieves industry-leading seasonal energy efficiency with advanced technology and high-performance compressor.
• Multi-Room Cooling: Supports up to 4 indoor units for comprehensive climate control.
• Compact Design: Space-saving dimensions make it suitable for various installation environments.
• Quiet Operation: Low sound levels ensure a peaceful environment.
• Flexible Installation: Flared connection method and extensive piping options.
• Reliable Performance: Consistent airflow and cooling capacity for optimal comfort.

Product Specifications

• MXY-4H38VG
  • Capacity (Min-Max): 8.0 (1.4-11.6) kW
  • Power Input: 1.62 kW
  • Starting Current: 7.22 A
  • Running Current: 7.22 A
  • Airflow: 59.2 CMM (m³/min)
  • Dimension (WxDxH): 950x330x796 mm
  • Net Weight: 58 kg
  • External Piping - Gas Diameter: 1noX12.70mm + 3noX9.52mm
  • External Piping - Liquid Diameter: 4noX6.35mm
  • Max Piping Length (Each): 25 m
  • Max Piping Length (Total): 70 m
  • Max Height Difference: 15 m
  • Refrigerant: R32
  • Power Supply: 230V, 1 Phase, 50Hz
  • No. of Connectable Indoor Units: 4
• MSXY-FP24VG
  • Rated Capacity: 7.1 kW
  • Power Input: 0.069 kW
  • Running Current: 0.60 A
  • Airflow Rate: 9.3-11.1-13.7-16.1-20.0 CMM (m³/min)
  • Sound Level: 30-35-41-45-50 dB(A)
  • Dimension (WxDxH): 923x250x305 mm
  • Net Weight: 13 kg
  • External Piping - Gas Diameter: 12.70 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP13VG
  • Rated Capacity: 3.5 kW
  • Power Input: 0.036 kW
  • Running Current: 0.33 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-14.1 CMM (m³/min)
  • Sound Level: 19-24-30-36-47 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP10VG
  • Rated Capacity: 2.8 kW
  • Power Input: 0.028 kW
  • Running Current: 0.27 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-12.9 CMM (m³/min)
  • Sound Level: 19-24-29-36-45 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm

Ideal For

The Mitsubishi System 4 Aircon is ideal for homeowners seeking efficient cooling solutions for multiple rooms. Perfect for families or individuals who desire consistent climate control across various spaces.

In the Box

• Outdoor Unit: MXY-4H38VG
• Indoor Units: 2x MSXY-FP10VG, 1x MSXY-FP13VG, 1x MSXY-FP24VG

Product Description

The Mitsubishi System 4 Air Conditioner offers superior cooling efficiency with its advanced inverter technology, making it perfect for medium to large spaces. Its sleek design and quiet operation ensure it blends seamlessly into any environment while providing powerful, energy-efficient cooling.

Key Features

• Advanced Inverter Technology: Ensures efficient energy consumption and consistent cooling performance.
• Multi-Room Cooling: Capable of cooling multiple rooms simultaneously, perfect for large homes or offices.
• Quiet Operation: Designed to operate quietly, ensuring a peaceful environment.
• Compact Design: Sleek and compact design fits seamlessly into any room decor.
• Environmentally Friendly: Uses R32 refrigerant, which has a lower environmental impact.
• Durable Build: Built with high-quality materials for long-lasting performance.

Product Specifications

• MXY-4H38VG
  • Capacity (Min-Max): 8.0 (1.4-11.6) kW
  • Power Input: 1.62 kW
  • Starting Current: 7.22 A
  • Running Current: 7.22 A
  • Airflow: 59.2 CMM (m³/min)
  • Dimension (WxDxH): 950x330x796 mm
  • Net Weight: 58 kg
  • Outdoor Sound Level: 49 dB(A)
  • Connection Method (Indoor/Outdoor): Flared
  • External Piping - Gas Diameter: 1 no x 12.70 mm + 3 no x 9.52 mm
  • External Piping - Liquid Diameter: 4 no x 6.35 mm
  • Max Piping Length (Each): 25 m
  • Max Piping Length (Total): 70 m
  • Max Height Difference: 15 m
  • Refrigerant: R32
  • Power Supply: 230V, 1 Phase, 50Hz
  • Pre-charged Refrigerant Quantity (Max): 2.00 kg
  • No. of Connectable Indoor Units: 4
  • Energy Labelling Scheme: 1790/2926 kWh
• MSXY-FP20VG
  • Rated Capacity: 6.0 kW
  • Power Input: 0.059 kW
  • Running Current: 0.52 A
  • Airflow Rate: 9.3-11.1-13.7-16.1-20.0 CMM (m³/min)
  • Sound Level: 30-35-41-45-50 dB(A)
  • Dimension (WxDxH): 923x250x305 mm
  • Net Weight: 13 kg
  • External Piping - Gas Diameter: 12.70 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP10VG
  • Rated Capacity: 2.8 kW
  • Power Input: 0.028 kW
  • Running Current: 0.27 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-12.9 CMM (m³/min)
  • Sound Level: 19-24-29-36-45 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP18VG
  • Rated Capacity: 5.0 kW
  • Power Input: 0.042 kW
  • Running Current: 0.38 A
  • Airflow Rate: 6.2-7.7-9.5-12.1-14.8 CMM (m³/min)
  • Sound Level: 28-33-38-44-49 dB(A)
  • Dimension (WxDxH): 923x250x305 mm
  • Net Weight: 13 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm

Ideal For

This Mitsubishi System 4 Air Conditioner is ideal for medium to large-sized homes or offices, providing efficient cooling for multiple rooms with its advanced inverter technology.

In the Box

• Outdoor Unit: MXY-4H38VG
• Indoor Units: 2x MSXY-FP10VG, 1x MSXY-FP18VG, 1x MSXY-FP20VG

Product Description

The Mitsubishi System 4 Aircon is a versatile and efficient air conditioning solution designed for multi-room cooling. With its advanced inverter technology, it provides powerful yet energy-efficient cooling, making it ideal for both residential and commercial spaces. Its quiet operation and environmentally friendly refrigerant ensure a comfortable and sustainable cooling experience.

Key Features

• Energy Efficient: Equipped with advanced inverter technology for optimal energy savings and reduced electricity bills.
• Powerful Cooling: Offers a wide range of cooling capacities to suit different room sizes and requirements.
• Quiet Operation: Designed to operate quietly, ensuring a peaceful environment in your home or office.
• Durable Design: Built with high-quality materials for long-lasting performance and reliability.
• Easy Installation: Comes with flexible piping options for hassle-free installation.
• Environmentally Friendly: Uses R32 refrigerant, which has a lower environmental impact.

Product Specifications

• MXY-4H38VG
  • Capacity (Min-Max): 8.0 (1.4-11.6) kW
  • Power Input: 1.62 kW
  • Starting Current: 7.22 A
  • Running Current: 7.22 A
  • Airflow: 59.2 CMM (m³/min)
  • Dimension (WxDxH): 950x330x796 mm
  • Net Weight: 58 kg
  • Refrigerant: R32
  • Power Supply: 230V, 1 Phase, 50Hz
  • No. of Connectable Indoor Units: 4
• MSXY-FP24VG
  • Rated Capacity: 7.1 kW
  • Power Input: 0.069 kW
  • Running Current: 0.60 A
  • Airflow Rate: 9.3-11.1-13.7-16.1-20.0 CMM (m³/min)
  • Sound Level: 30-35-41-45-50 dB(A)
  • Dimension (WxDxH): 923x250x305 mm
  • Net Weight: 13 kg
• MSXY-FP18VG
  • Rated Capacity: 5.0 kW
  • Power Input: 0.042 kW
  • Running Current: 0.38 A
  • Airflow Rate: 6.2-7.7-9.5-12.1-14.8 CMM (m³/min)
  • Sound Level: 28-33-38-44-49 dB(A)
  • Dimension (WxDxH): 923x250x305 mm
  • Net Weight: 13 kg
• MSXY-FP10VG
  • Rated Capacity: 2.8 kW
  • Power Input: 0.028 kW
  • Running Current: 0.27 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-12.9 CMM (m³/min)
  • Sound Level: 19-24-29-36-45 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg

Ideal For

This Mitsubishi System 4 Aircon is ideal for medium to large-sized homes or offices, providing efficient cooling for multiple rooms. Perfect for those seeking a reliable and energy-efficient air conditioning solution.

In the Box

• Outdoor Unit: MXY-4H38VG
• Indoor Units: 2x MSXY-FP10VG, 1x MSXY-FP18VG, 1x MSXY-FP24VG

Product Description

The Mitsubishi System 4 Aircon offers superior cooling performance with its advanced inverter technology. Designed for large spaces, it ensures energy efficiency and quiet operation, making it perfect for homes and offices.

Key Features

• Energy Efficient: Achieve industry's leading seasonal energy efficiency with advanced technologies and high-performance compressor.
• Quiet Operation: Enjoy a peaceful environment with sound levels as low as 19dB(A).
• Flexible Airflow: Customize your comfort with adjustable airflow rates ranging from 4.1 to 20.0 CMM.
• Compact Design: Space-saving dimensions make it easy to fit into any room layout.
• Durable Build: Robust construction ensures long-lasting performance.
• Easy Installation: Flared connection method simplifies setup.

Product Specifications

• MSXY-FP24VG
  • Rated Capacity: 7.1kW
  • Power Input: 0.069kW
  • Running Current: 0.60A
  • Airflow Rate: 9.3-11.1-13.7-16.1-20.0 CMM
  • Sound Level: 30-35-41-45-50 dB(A)
  • Dimension (WxDxH): 923x250x305 mm
  • Net Weight: 13 kg
  • External Piping - Gas Diameter: 12.70 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP20VG
  • Rated Capacity: 6.0kW
  • Power Input: 0.059kW
  • Running Current: 0.52A
  • Airflow Rate: 9.3-11.1-13.7-16.1-20.0 CMM
  • Sound Level: 30-35-41-45-50 dB(A)
  • Dimension (WxDxH): 923x250x305 mm
  • Net Weight: 13 kg
  • External Piping - Gas Diameter: 12.70 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP10VG
  • Rated Capacity: 2.8kW
  • Power Input: 0.028kW
  • Running Current: 0.27A
  • Airflow Rate: 4.1-5.1-6.3-9.1-12.9 CMM
  • Sound Level: 19-24-29-36-45 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MXY-4H38VG
  • Capacity (Min-Max): 8.0 (1.4-11.6) kW
  • Power Input: 1.62 kW
  • Full Load COP: 4.97
  • Weighted COP: 6.19
  • Starting Current: 7.22 A
  • Running Current: 7.22 A
  • Airflow: 59.2 CMM
  • Dimension (WxDxH): 950x330x796 mm
  • Net Weight: 58 kg
  • Outdoor Sound Level: 49 dB(A)
  • Connection Method: Flared
  • External Piping - Gas Diameter: 4noX9.52 mm
  • External Piping - Liquid Diameter: 4noX6.35 mm

Ideal For

This Mitsubishi System 4 Aircon is ideal for large homes and offices that require efficient cooling solutions. Perfect for those who value energy efficiency and quiet operation.

In the Box

• Outdoor Unit: MXY-4H38VG
• Indoor Units: 2x MSXY-FP10VG, 1x MSXY-FP20VG, 1x MSXY-FP24VG

Product Description

The Mitsubishi System 4 Aircon offers a powerful and efficient cooling solution for multiple rooms. With advanced inverter technology, it ensures energy savings and quiet operation, making it perfect for modern homes.

Key Features

• Energy Efficient: Utilizes advanced inverter technology for reduced energy consumption.
• Multi-room Cooling: Supports up to four indoor units for comprehensive cooling coverage.
• Quiet Operation: Designed to minimize noise, ensuring a peaceful environment.
• Compact Design: Sleek and space-saving units fit seamlessly into any room.
• Advanced Airflow: Optimized airflow settings for consistent and comfortable cooling.
• Durable Build: Built with high-quality materials for long-lasting performance.

Product Specifications

• MXY-4H38VG
  • Capacity (Min-Max): 8.0 (1.4-11.6) kW
  • Power Input: 1.62 kW
  • Starting Current: 7.22 A
  • Running Current: 7.22 A
  • Airflow: 59.2 CMM (m³/min)
  • Dimension (WxDxH): 950x330x796 mm
  • Net Weight: 58 kg
  • Connection Method (Indoor/Outdoor): Flared
  • External Piping - Gas Diameter: 1noX12.70mm + 3noX9.52mm
  • External Piping - Liquid Diameter: 4noX6.35mm
  • Max Piping Length (Each): 25 m
  • Max Piping Length (Total): 70 m
  • Max Height Difference: 15 m
  • Refrigerant: R32
  • Power Supply: 230V, 1 Phase, 50Hz
  • Pre-charged Refrigerant Quantity (Max): 2.00 kg
  • No. of Connectable Indoor Units: 4
  • Energy Labelling Scheme: 1790/2926 kWh
• MSXY-FP13VG
  • Rated Capacity: 3.5 kW
  • Power Input: 0.036 kW
  • Running Current: 0.33 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-14.1 CMM (m³/min)
  • Sound Level: 19-24-30-36-47 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm
• MSXY-FP10VG
  • Rated Capacity: 2.8 kW
  • Power Input: 0.028 kW
  • Running Current: 0.27 A
  • Airflow Rate: 4.1-5.1-6.3-9.1-12.9 CMM (m³/min)
  • Sound Level: 19-24-29-36-45 dB(A)
  • Dimension (WxDxH): 799x232x290 mm
  • Net Weight: 9 kg
  • External Piping - Gas Diameter: 9.52 mm
  • External Piping - Liquid Diameter: 6.35 mm

Ideal For

The Mitsubishi System 4 Aircon is ideal for homeowners seeking efficient cooling solutions for multiple rooms. Perfect for families or individuals who value energy efficiency and advanced technology in air conditioning.

In the Box

• Outdoor Unit: MXY-4H38VG
• Indoor Units: 2x MSXY-FP10VG, 2x MSXY-FP13VG
