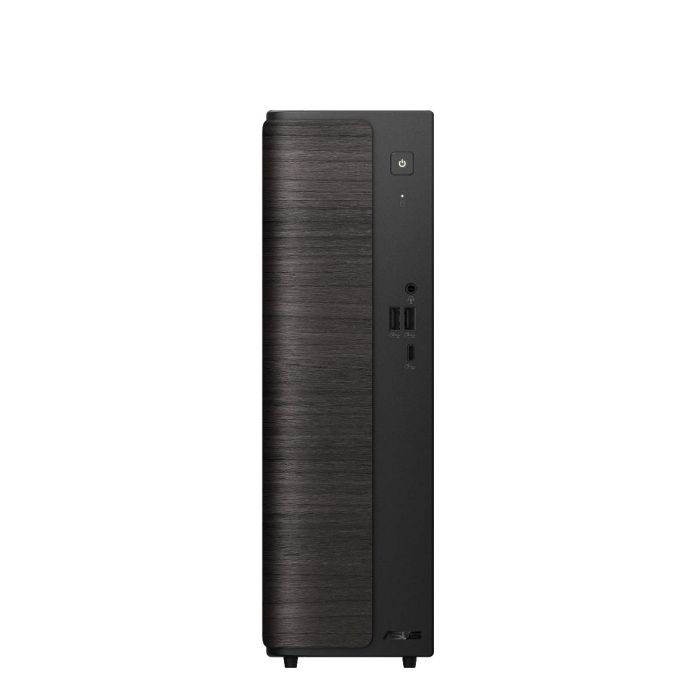

ASUS V500 SFF DESKTOP CORE 7 240H V501SV-07240H070W

16GB RAM 1TB SSD

Product Description

The ASUS V500 SFF (V501SV-07240H070W) is a compact, Small Form Factor (SFF) desktop designed for home and office use, featuring a modern aesthetic and quiet operation. This specific model is powered by the Intel Core 7 Processor 240H, a high-performance chip from the Raptor Lake refresh or similar series, offering 10 cores and 16 threads for smooth multitasking.

Core Features

Performance & Core Hardware

Next-Gen Processing: Powered by the Intel Core 7 Processor 240H with 10 cores (6 Performance-cores, 4 Efficient-cores) and speeds up to 5.2 GHz.

Memory & Storage: Features 16GB DDR5 RAM (expandable to 64GB) and high-speed NVMe PCIe 4.0 SSD storage. It supports dual storage configurations with up to 2TB SSD + 2TB HDD.

Efficiency: Designed to maintain stable 45W CPU performance over long periods, delivering up to 30% better performance than similar traditional desktops.

Quiet Cooling & Home Design

Whisper-Quiet Operation: Engineered to run at under 22 dB in whisper mode and approximately 30.8 dB even under heavy performance loads.

Modern Aesthetic: Unlike traditional "boxy" PCs, it features soft rounded edges, a woven-weave finish, and a warm 4000K indicator light to blend into modern home decor.

Advanced Thermal System: Uses a compact air cooler with a copper heat pipe and an optimized airflow path to expel heat efficiently through the rear.

Connectivity & Audio

Abundant USB Ports: A total of 7 USB ports, including 3 front-mounted ports (one USB-C 3.2 Gen 1) for easy access to external drives or peripherals.

Dual Monitor Support: Supports two external displays via HDMI 1.4 and DisplayPort 1.4.

AI Noise-Canceling: Features Two-Way AI Noise-Canceling technology to filter out background noise during video calls or recordings.

Fast Wireless: Equipped with Wi-Fi 6 and Bluetooth 5.4 for high-speed, stable wireless connections.

Reliability & Security

Durable Build: Uses all-solid capacitors for improved stability and lifespan. It is also tested to MIL-STD 810H military-grade durability standards.

Security Features: Includes a Trusted Platform Module (TPM 2.0), Kensington security slot, and HDD password protection for business-level security.

Technical Specifications

• Processor: Intel Core 7 240H (10 Cores: 6P + 4E, 16 Threads, 24MB Cache, up to 5.2 GHz).
• Graphics: Integrated Intel UHD Graphics (supports 4K dual-monitor output).
• Memory: 16GB DDR5 SO-DIMM (5200 MT/s); 2x slots supporting up to 64GB total.
• Storage: 512GB M.2 NVMe PCIe 4.0 SSD.
  Expansion: Supports up to two M.2 SSDs and one 3.5" HDD (Max 4TB total capacity).
• Connectivity (Wireless): Wi-Fi 6 (802.11ax) Dual Band + Bluetooth 5.4.
• Front I/O Ports:
  1x USB 3.2 Gen 1 Type-C
  2x USB 3.2 Gen 1 Type-A
  1x 3.5mm combo audio jack
• Rear I/O Ports:
  4x USB 2.0 Type-A
  1x HDMI 1.4 & 1x DisplayPort 1.4
  1x RJ45 Gigabit Ethernet
  7.1 channel audio ports
• Power Supply: 180W (80+ Bronze, peak 228W).
• Physical: 9.46 x 29.43 x 30.86 cm; approx. 5 kg.

Additional Features

• Security: Firmware TPM 2.0, Kensington lock slot, and BIOS/HDD password protection.
• In-Box: Typically includes a wired optical mouse and wired keyboard.

Best for

Modern Home Offices: Designed with "soft" aesthetics—including woven-weave finishes and rounded edges—it is built to blend into home decor rather than stand out.

Shared Living Spaces: Its whisper-quiet operation (as low as 22 dB) and 0 dB idle mode make it perfect for living rooms or bedrooms where loud fan noise would be disruptive.

Family Productivity & Study: With a powerful Core 7 240H processor, it excels at heavy multitasking, such as running multiple browser tabs, managing family finances, and handling intensive school projects simultaneously.

Creative Hobbyists: The high-speed DDR5 memory and capable integrated graphics are ideal for light photo editing (Photoshop) and video editing for vlogs or social media.
