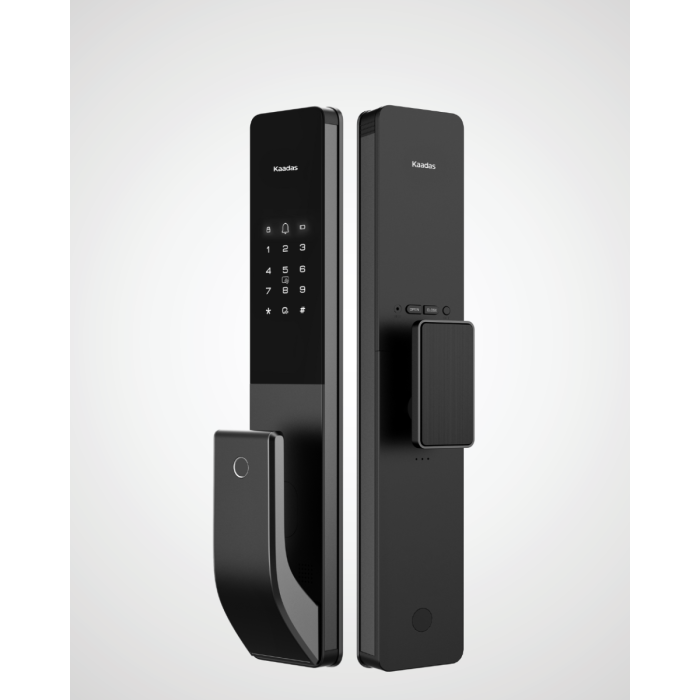

KAADAS PUSH-PULL DIGITAL DOOR LOCK KAADAS Q15-5WK

FP, PINCODE, RFID TAG, APP (OTP) MECHANICAL KEY

Product Description

The Kaadas Q15-5WK is a push-pull digital mortise door lock that features integrated Wi-Fi for remote app management without the need for an external bridge. It is designed with a sleek matte black finish and offers "Dual Unlock" capabilities when paired with compatible gate locks like the Kaadas R8GD or R9KFV.

Key Features

• Integrated Wi-Fi Connectivity: Connects directly to the Kaadas app on a 2.4GHz network, allowing you to generate temporary PINs, monitor access logs, and receive doorbell alerts remotely.
• Biometric Security: Equipped with a Sweden FPC semiconductor fingerprint sensor that recognizes up to 100 fingerprints in less than one second.
• Versatile Access Methods:
  Fingerprint: Store up to 100 unique scans.
  PIN Code: Supports 1 Master PIN and up to 20 user or one-time codes (6–12 digits).
  RFID Card: Includes 2 cards, with capacity for up to 100.
  Mechanical Key: 2 backup keys provided for emergency access.
  Optional Remote Control: Supports a 433 MHz remote controller (sold separately).
• Dual Unlock System: When synced with a Kaadas gate lock, authenticating at the door lock can simultaneously unlock the gate for seamless entry.
• Power Management: Powered by a high-capacity 4,200 mAh rechargeable lithium battery that typically lasts 6 to 12 months per charge. It includes a USB-C emergency power port for use if the battery is depleted.

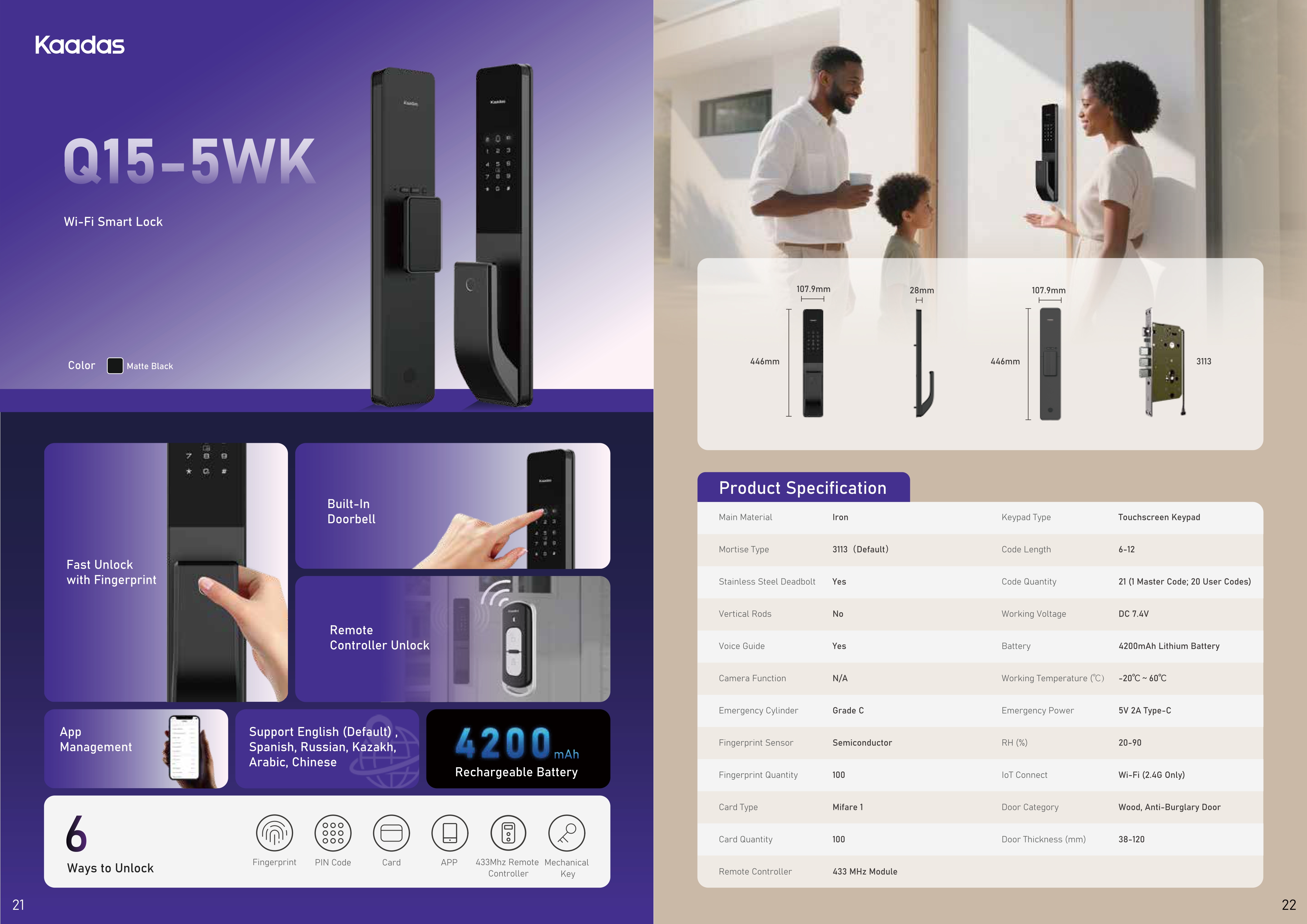

Technical Specifications

• Material: Aluminum Alloy or Iron with Matte Black finish
• Dimensions: Front & Back Panels: 446 mm (H) x 107.9 mm (W) x 28 mm (D)
• Mortise Type: 3113 (60 mm backset) with stainless steel deadbolt
• Door Thickness: 38 mm – 120 mm
• Power Supply: 4,200 mAh rechargeable lithium battery (approx. 6–12 months life)
• Emergency Power: 5V 2A USB-C port
• Working Environment: -20 °C to 60 °C; 20% – 90% RH humidity

Access and Security

• Fingerprint: Sweden FPC semiconductor sensor; capacity for up to 100 fingerprints.
• PIN Codes: Supports 1 Master PIN and up to 20 user/one-time codes (6–12 digits).
• RFID Card: Mifare 1 type; capacity for up to 100 cards (2 included).
• App Control: Uses the Kaadas App (some regions use Tuya) via 2.4GHz Wi-Fi for real-time logs, OTP generation, and doorbell alerts.
• Security Modes: Includes privacy mode, fake PIN (anti-peeping), tamper alarm, obstruction alarm, and auto-lock.
• Optional Remote: Supports a 433 MHz remote controller (sold separately).

Best for:

Busy Families & Large Households: With a capacity of 100 fingerprints and 100 RFID cards, it accommodates multi-generational families. The one-step push-pull design is specifically noted for its convenience when your hands are full with groceries or children.

Airbnb Hosts & Landlords: The ability to generate temporary PINs and monitor real-time access logs remotely makes it a top choice for managing rental properties or granting access to service providers like cleaners.

HDB & Condo Owners in Singapore: It is particularly popular in Singapore because it can be bundled with compatible gate locks (like the R8GD or R9KFV) to use the "Dual Unlock" feature, which unlocks both your main door and gate with a single authentication.

Tech-Focused Homeowners: Because Wi-Fi is built directly into the lock, it is best for those who want smart features (like doorbell alerts and app management) without the clutter or cost of an external Wi-Fi bridge.
