KAADAS DIGITAL GATE LOCK KAADAS R9 DIGITAL GATE LOCK

FACIAL RECOGNITION FINGERPRINT PIN CARD

Product Description

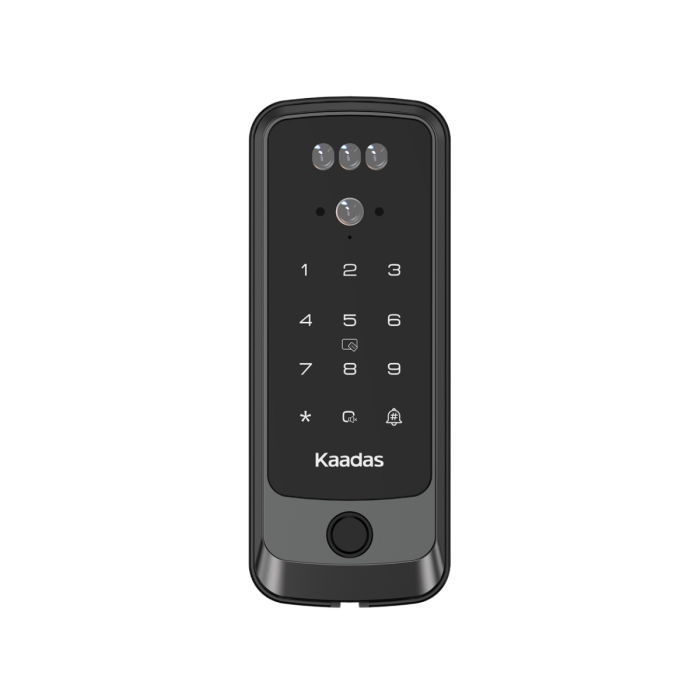

The Kaadas R9KFV (commonly referred to as the R9) is a premium, all-in-one digital gate lock specifically designed for metal gates in Singapore (such as HDB gates). It is one of the most advanced models in the Kaadas lineup, featuring 3D Face Recognition and integrated video surveillance.

Key Features & Capabilities

• 3D Face Recognition: Allows for hands-free, secure entry using advanced facial scanning.
• Integrated Video & Monitoring: Includes a high-definition 150° wide-angle camera (1 megapixel) and a 3.5-inch to 4-inch HD color screen for live monitoring of visitors.

Comprehensive Unlock Methods:

• Entry: Face recognition, Fingerprint (Sweden FPC sensor), PIN code, RFID card, Kaadas App control, or Mechanical key.
• Exit: Fingerprint scanner on the inside, Remote control, or Mechanical key.
• Smart App Control: Built-in WiFi allows you to generate temporary PINs, track access logs in real-time, and use two-way audio to speak with visitors through the lock.
• Dual Unlock Synergy: Can be synchronised with compatible Kaadas door locks (like the Q9) so that one authentication unlocks both the gate and the main door simultaneously.

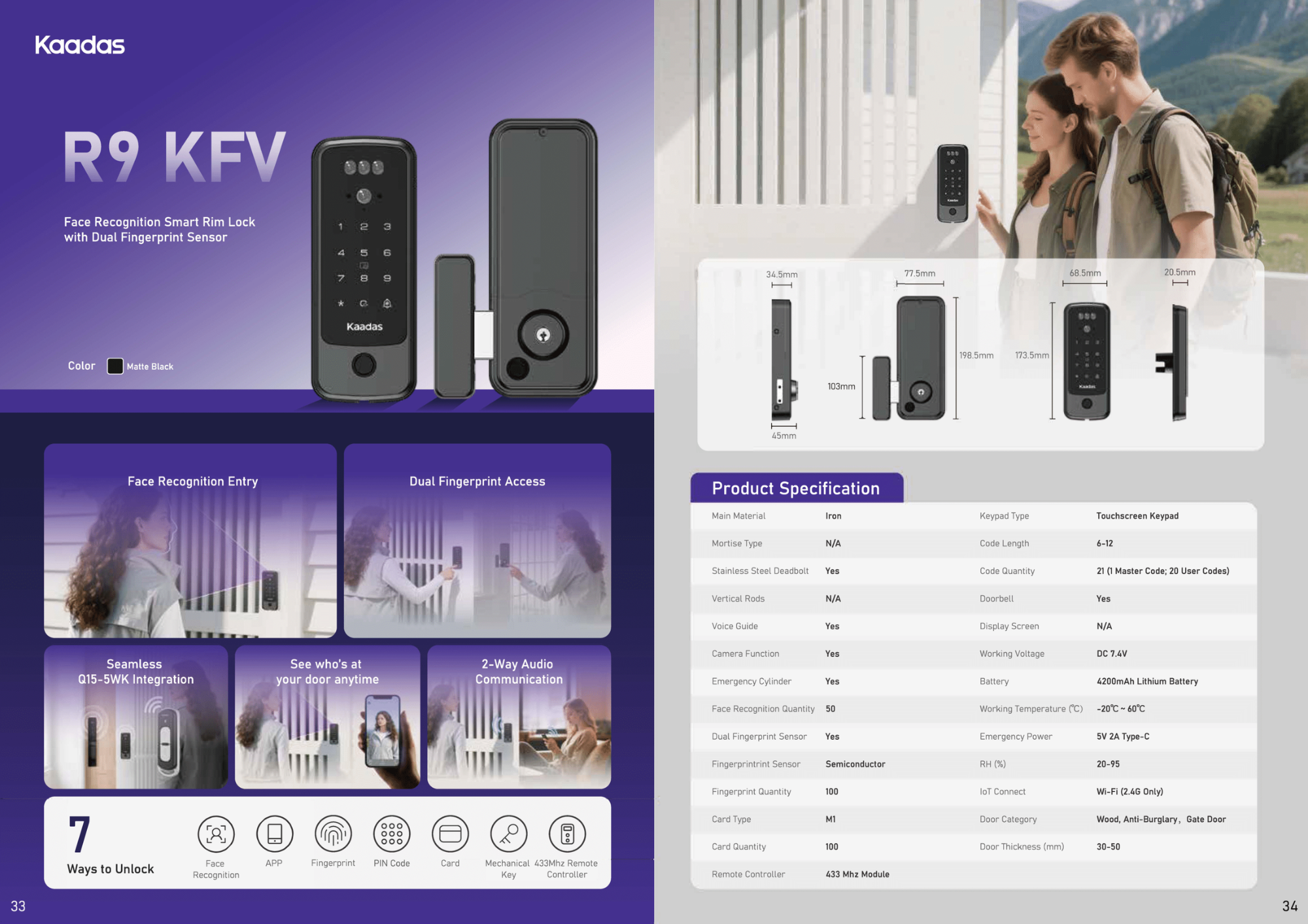

Technical Specifications

• Authentication: 3D Face, Fingerprint, PIN, RFID Card, App, Mechanical Key
• User Capacity: 20 Faces, 100 Fingerprints, 100 Cards, 10 PINs
• Camera: 1-Megapixel, 150° Wide-Angle (1280 x 720p)
• Screen: 4-inch HD IPS Color Screen (Indoor unit)
• Connectivity: Built-in 2.4GHz Wi-Fi (No hub required)
• Power: 5000mAh Rechargeable Lithium Battery
• Battery Life: Approx. 3–5 months (depending on usage)
• Emergency Power: USB-C Power Bank port
• Material: Aluminum Alloy & Tempered Glass
• Gate Compatibility: Suitable for most Singapore HDB/Condo metal gates

Advanced Functionalities

• Two-Way Audio: Speak to visitors at the gate via the Kaadas App.
• Real-time Monitoring: View a live feed of your corridor from the indoor screen or your phone.
• Dual-Verification Mode: Requires two forms of ID (e.g., Face + Fingerprint) for enhanced security.
• Auto-Locking: Sensor-based locking ensures the gate is secured the moment it closes.
• Smart Linkage: Can be synced with Kaadas door locks (like the Q9) to unlock both the door and gate with a single scan.

Lock Dimensions

According to specifications from AN Digital Lock (via Shopee) and official Kaadas resources, the R9 has the following measurements:

• Front Body (External):
  Height: 173.5 mm
  Width: ~75 mm
  Depth: ~25 mm
• Back Body (Internal):
  Height: ~200 mm
  Width: ~80 mm
  Depth: ~60 mm

Installation Requirements

To avoid collision with your main door, your gate must meet these criteria:

• Door-to-Gate Clearance: A minimum distance of 140 mm is required between the gate and the main door.
• Flat Surface Area: You need a flat area on your gate bars of at least 230 mm (Height) x 100 mm (Width) for secure mounting.
• Gate Thickness: Your gate must be at least 25 mm thick for the lock to be installed properly.

Potential Fit Issues

• Handle Collision: If your gate has a long vertical handle, the R9 might require a custom bracket or the removal of the existing handle.
• Mesh/Netting: If your gate has a fine wire mesh, a small section may need to be trimmed so the fingerprint sensor and camera remain unobstructed.

Best For: Homeowners looking for the highest level of security and convenience, specifically those who want to see and speak to visitors at their gate without opening the door.
