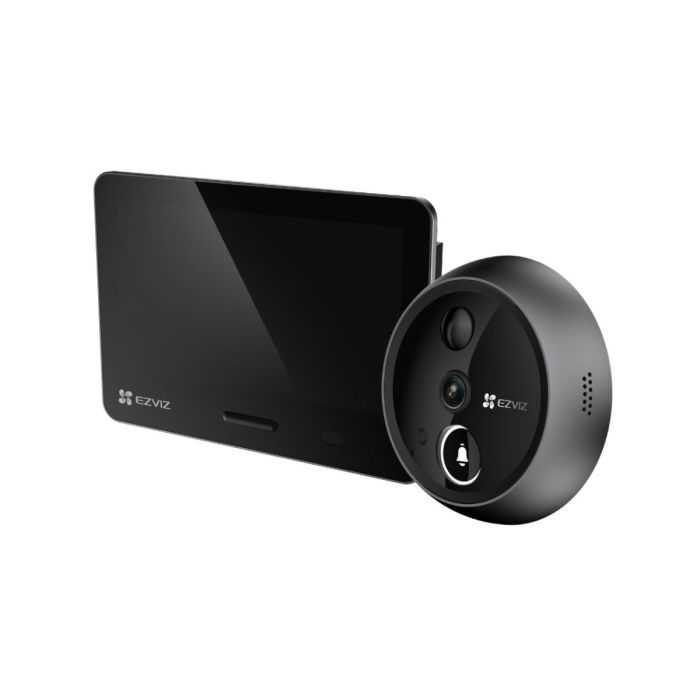

EZVIZ PEEPHOLE DOORVIEWER AND VIDEO DOORBELL EP4
All items available for online purchase are not guaranteed to be in stock at the time of order processing. In the event that we are unable to fulfill your order, we will contact you with an alternative, or given a full refund.
Specifications
Model: CS-EP4
Installation Parameters
- Supportive Hole Diameter: 14 to 50 mm (0.55 to 1.97 inch)
- Supportive Door Diameter: 35 to 105 mm (1.38 to 4.13 inch)
Camera Parameters
- Sensor: 1/2.8" Progressive Scan CMOS
- Lens: 2.0 mm @ F1.6, visual angle (diagonal):160°
- Day / Night Switch: ICR Infrared Filter
- IR Distance: Max. 5 m
- Max. Resolution: 4K (3840 × 2160)
- Video Frame Rate: 15 fps
PIR Detection
- Angle: 110°
- Distance: Max. 6 m (20 ft)
- Sensitivity: Adjustable
Interface
- Storage Interface: Supports local storage (max. 512 GB)
- Audio Input: Built-in high sensitivity microphone
- Audio Output: Built-in high-power speaker
- Buttons: Doorbell button, power button, screen wake up button
Network
- Intelligence Alarm: AI-powered human motion detection & PIR motion
Protocol: EZVIZ Cloud Proprietary Protocol
Video Intercom: Local and remote video intercom
General Function: Cloud video encryption and image encryption
Wireless
- Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
- Frequency Range: 2.4 GHz ~ 2.4835 GHz
- Channel Bandwidth: Supports 20 MHz
- Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
- Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
General
- Screen: 5.5-inch color touch screen
- Color: Golden / sliver
- Operating Conditions: -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)
- Power Supply: DC5V±10%
- Power Consumption: Max. 5 W
- Dimension: Screen and base: 103 × 142.4 × 28.4 mm (4.06 × 5.61 × 1.12 inch); Peephole
- doorbell: 71.7 × 71.7 × 52.7 mm (2.82 × 2.82 × 2.07 inch)
- Weight: 775.5 g (with package)
In the box
- Panel
- Mounting Base
- Camera
- Buckle
- Screws × 6
- Base Cover
- Power Cable
- Regulatory Information
- Quick Start Guide
Certifications: CE / REACH / WEEE / RoHS
Product Information:
- Brand: ezviz
- AI-POWERED FACE RECOGNITION
- 4K RESOLUTION
- LIVE VIEW & TWO-WAY TALK
- 5.5-INCH (COLOR) TOUCH SCREEN
- WDR & DISTORTION CORRECTION
- F1.6 LARGE APERTURE
- Dimensions (W x H x D): 2.8 x 10.3 x 14.2 cm
- Weight: 0.80 Kg
- Warranty: 2 Year(s)
