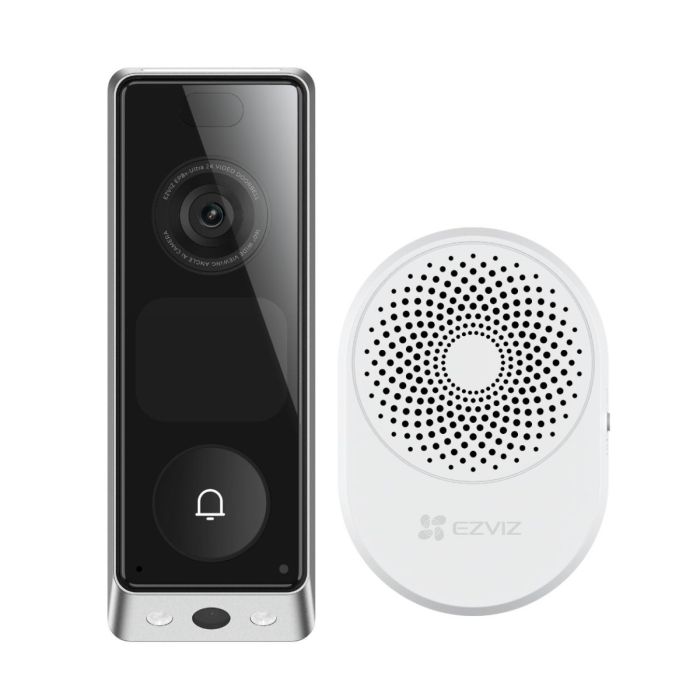

EZVIZ AI-POWERED INTERACTIVE VIDEO DOORBELL KIT EP8 ULTRA
All items available for online purchase are not guaranteed to be in stock at the time of order processing. In the event that we are unable to fulfill your order, we will contact you with an alternative, or given a full refund.
Specifications
Model: CS-EP8 Ultra
Camera Parameters
- Image Sensor: 1/2.8" Progressive Scan CMOS (Supports low light sensitivity)
- Lens: Upper camera: 2.0mm@F 1.6 ,diagonal field of view 162 ° Bottom camera: 1.8 mm @
- F2.4 ,diagonal field of view 88 °
- Day & Night: ICR infrared filter type ( Max: 6 meters)
Video Parameters
- Max. Resolution: Main camera: 6MP (2464 × 2464) Bottom camera: 2MP (1920 × 1080)
- DNR: 2D / 3D DNR
- Video Compression: H.265 / H.264
- Frame Rate: 15fps. Fixed frame rate
PIR Sensor
- Sensing Angle: 100°
- Sensing Distance: Max. 6 m (19.7 ft)
- Sensitivity: User adjustable (High: 6 meters, Mid-high: 5 meters, Medium: 4 meters, Mid-low: 3 meters and Low: up to 2 meters)
Storage
- Local Storage: Built-in 32GB eMMC
- Cloud Storage: Supports EZVIZ CloudPlay storage (subscription required)
Interface
- Audio Input: Built-in high-sensitivity microphone
- Audio Output: Built-in high-power speaker
- Button: Doorbell button with electronic doorbell
- Reset button: Yes
Network Parameters
- Protocol: EZVIZ Cloud Proprietary Protocol
- Interface Protocol: EZVIZ Cloud Proprietary Protocol
Functions
- Intelligent Alarm: AI-powered human shape detection; Package detection
- Video Intercom: Two-way talk
Wi-Fi Parameters
- Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
- Frequency Range: 2.4GHz ~ 2.4835GHz
- Channel Bandwidth: Supports 20MHz
- Security: 64/128-bit WEP,WPA/WPA2,WPA-PSK/WPA2-PSK
- Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
General
- Operating Conditions: -20°C to 50°C Humidity 95% or less (non-condensing)
- Ingress Protection Grade: IP65
- Size: 120mm*103mm*190mm
- Battery Capacity: 9,600mAh rechargeable lithium battery (one more back-up battery for free)
- Power Supply: 8-24VAC, type-C:5V(+-10%)
- Power Consumption: 3W Max
- Weight with Package: 890g
In the box
- Doorbell
- Mounting Bracket
- Inclined Mounting Bracke
- Drill Template
- Chime
- Battery × 2
- Type-C Cable
- Pin
- Screw Kit
- U-Shaped Wire × 2
- Wire Connector × 2
- Regulatory Information × 4
- Quick Start Guide
- Video / Audio Monitoring Sticker
Certifications: CE / REACH / WEEE / RoHS
Product Information:
- Brand: ezviz
- BUILT-IN AI INTERACTIVE SCREEN
- RESPONSIVE SMART CHARACTERS
- TWO-WAY VIDEO CALL
- AI-POWERED RECOGNITION
- 6MP & 2MP DUAL LENSES
- SMART HUMAN MOTION DETECTION
- Dimensions (W x H x D): 3.5 x 15.5 x 5.4 cm
- Weight: 0.89 Kg
- Warranty: 2 Year(s)
