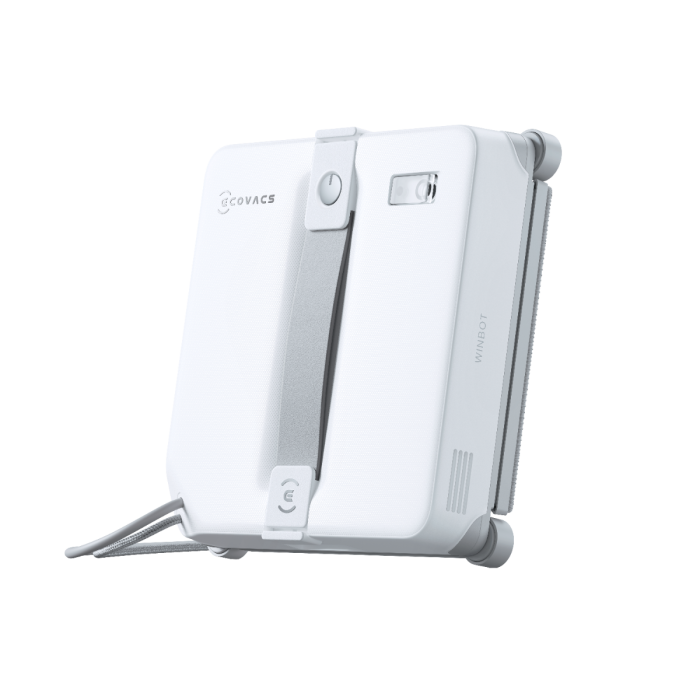

Ecovacs Winbot Mini 2 WG853-15

Product Highlight

WINBOT mini 2 is engineered to handle a wide range of window sizes, it effortlessly handles even the tightest spaces. With its highly integrated internal structure and refined appearance design, it adapts seamlessly to diverse cleaning scenarios.
The WINBOT mini 2 has been specifically upgraded with brushes on all four corners and an extended pad design that achieves ultra-close edge cleaning within 1mm. This allows it to effortlessly handle windows in narrow areas and truly leave no blind spots.

Specifications

Cleaning System

Auto Spray (Y/N): Yes
Manual Spray (on APP): Yes
Spray Width (cm): 8.5cm
Spray Length (front)cm): 10cm
Max Accumulated Spray Area of Water Tank（Fast Mode, ㎡）: 30（㎡）
Spray Width: 8.5cm
Method of Spray: Ultrasonic Water Spray
Self-adaptive Spray Volume (Y/N): Yes
Number of Spray Nozzles: 4
Material of Wiping Pad: Micorfiber（both sides）
Water Tank Empty Reminding (Y/N): Yes
Frame Distance Detection (Y/N): Yes
Water Tank Capacity（ml): 50±5(ml）
Min. Glass Thickness (mm): 3mm

Parts

Length of Safety Rope (m): 3.3(m)
Length of Extension Cord (m): N/A
Cleaning Solution (ml): 230(ml)
Cleaning Cloth Size (m㎡): 215*214(m㎡)

Climbing System

Split Drive Tech (Y/N): No
Intelligent Climbing System: Yes
Type of Blower Fan: Brushless Motor
Suction Power while moving（Pa): 3400 Pa
Max. Suction Power（Pa): 8000 Pa
Cleaning Efficiency in Default Mode (1X1㎡): 2min30s±10s（Fast Mode）

Intelligence

Path Planning Tech: WIN-SLAM 4.0
Cleaning Mode: Fast Cleaning Mode Deep Cleaning Mode Thorough Cleaning Mode Edge Cleaning Mode Spot Cleaning Mode Edge Mode Remote Mode
Return to Initial Spot(Y/N): Yes
Min. Detectable Height of Obstacle（mm): 2mm
Min. Detectable Height of Frame（mm): 1mm
Frame Detection (Y/N): Yes
Breakpoint Continuation (Y/N): Yes
APP Control: Yes
Manual Control (on APP): Four directional control

Applicable Working Conditions

Min. Window Size (cm): 25*25(cm)
Applicable Window Type: all types of flat windows
Applicable Frame Type: with Frame & Frameless
Min. Glass Thickness (mm): 3mm

Main SPEC(Power Supply)

Dimension of WINBOT(mm, L*W*H): 215*215*55
Battteries Capacity (Type, mAh): Lithium 3000mah
Battery Nominal Voltage (V): 3.6 (V)
Typle of Blower Fan: Brushless Motor
Power-off Protection Duration (min): 30 (min)
Battteries Capacity (Type, mAh): Lithium 3000mah
Weight of WINBOT (kg): 1.3±0.1 (kg)
Weight of Batteries (g): 55g±5g（(in-built battery)
Number of Batteries: 1
Rated Power (W): 66W
Safety Battery Charging Time (H): 3 （H)
Rated Voltage (V): 24V
Charging Time (H): 3（H )
Cleaning Efficiency in Default Mode (1X1㎡): 2min30s±10s（Fast Mode）
Battery Life (min): unlimited

Others

Dimension of Wiping Pad (LengthxWidth mm): 215*214 (mm)
Total Lenght of Power Cable（m): 4.7 （m）
Length of DC cord (m): 3.5 (m)
Length of AC cord (m): 1.2(m)
Length of Backup Safety Rope (m): 3.3 (m)
Capacity of Cleaning Solution (ml): 230 (ml)
Filling Nozzle (Y/N): No
