Commercial Air Conditioners

Product Description

The Mitsubishi HV Cassette Air Conditioner, model FDC100YNA-W/FDT100YA-W, is designed for commercial use, offering efficient cooling with a nominal capacity of 10.5 kW. Its energy-saving features and quiet operation make it perfect for large spaces like offices and retail stores.

Key Features

• Efficient Cooling: Nominal cooling capacity of 10.5 kW ensures rapid temperature control.
• Energy Saving: With an EER of 3.75, it offers excellent energy efficiency.
• Quiet Operation: Indoor sound pressure level as low as 30 dB(A) for a peaceful environment.
• Flexible Installation: Supports vertical height differences up to 20m.
• Durable Design: Robust exterior dimensions for both indoor and outdoor units.
• Eco-Friendly Refrigerant: Utilizes R32 refrigerant for reduced environmental impact.

Product Specifications

• FDC100YNA-W/FDT100YA-W
  • Power Source: 1 Phase, 220-240V, 50Hz/220V, 60Hz
  • Nominal Cooling Capacity: 10.5 kW (Min-Max: 2.0-11.5 kW)
  • Power Consumption: 2.80 kW
  • EER: 3.75
  • Inrush Current: 12.8/12.2/11.7A
  • Max Current: 17A
  • Sound Pressure Level (Indoor): 47/39/36/30 dB(A)
  • Sound Pressure Level (Outdoor): 57 dB(A)
  • Airflow (Indoor): 37/26/23/17 m³/min
  • Airflow (Outdoor): 58.4 m³/min
  • Exterior Dimensions (Indoor): 236x840x840 mm
  • Exterior Dimensions (Outdoor): 750x880x340 mm
  • Net Weight (Indoor): 30 kg
  • Net Weight (Outdoor): 51 kg
  • Refrigerant Type: R32
  • Refrigerant Charge Amount: 1.55 kg
  • Piping Size (Liquid/Gas): 06.35/015.88 mm
  • Refrigerant Line (One Way Length): 50 m
  • Vertical Height Differences (Outdoor Higher/Lower): MAX.20/MAX.20 m
  • Outdoor Operation Temperature Range: 21-46°C

Ideal For

This Mitsubishi HV Cassette Air Conditioner is ideal for commercial spaces such as offices, retail stores, and restaurants, providing efficient cooling for large areas.

In the Box

• Outdoor Unit: FDC100YNA-W
• Indoor Unit: FDT100YA-W

Product Description

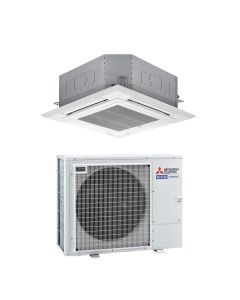

The Mitsubishi Cassette Air Conditioner PUYM125VKA/PLYM125EA is a top choice for commercial environments, offering robust cooling performance, energy efficiency, and a discreet ceiling-mounted design. Perfect for maintaining comfort in large spaces while minimizing energy costs.

Key Features

• Efficient Cooling: With a rated capacity of 11.4 kW, this unit provides powerful cooling for large spaces.
• Energy Saving: Features a high Full Load COP of 3.78 and Weighted COP of 4.82 for reduced energy consumption.
• Quiet Operation: Indoor sound levels range from 39 to 46 dB(A), ensuring a peaceful environment.
• Compact Design: The indoor unit dimensions are 840x840x298 mm, perfect for ceiling installations.
• Flexible Installation: Maximum piping length of 50m and height of 30m for versatile setup.
• Reliable Power Supply: Operates on a 230V, 1 Phase, 50Hz power supply.

Product Specifications

• PUYM125VKA/PLYM125EA
  • Function & Type: Cooling, Ceiling Cassette
  • Capacity (Rated/Max): 11.4 (14.0) kW
  • Power Input: 3.02 kW
  • Full Load COP: 3.78
  • Weighted COP: 4.82
  • Running Current: 13.70 A
  • Airflow: 26-29-32-34 CMM (m³/min)
  • Dimension (Indoor): 840x840x298 mm
  • Dimension (Outdoor): 1050x330x981 mm
  • Net Weight (Indoor): 27 kg
  • Net Weight (Outdoor): 63 kg
  • Indoor Sound Level (Silent-High): 39-41-44-46 dB(A)
  • Outdoor Sound Level: 55 dB(A)
  • Connection Method: Flared
  • External Piping (Gas): 15.88 mm
  • External Piping (Liquid): 9.52 mm
  • Piping Length (Max): 50 m
  • Piping Height (Max): 30 m
  • Power Supply: 230V, 1 Phase, 50Hz
  • Energy Labelling Scheme: i1473/5455 kWh

Ideal For

This Mitsubishi Cassette Air Conditioner is ideal for commercial spaces such as offices, retail stores, and restaurants where efficient cooling and a sleek ceiling-mounted design are desired.

In the Box

• Outdoor Unit: PUYM125VKA
• Indoor Unit: PLYM125EA
• Remote Control
• Installation Manual
• Warranty Card

Product Description

The Mitsubishi Cassette Aircon SUYM80VA/PLYM80EA-WIRED is a top-tier commercial air conditioning solution designed for large spaces. With a powerful 7.6kW cooling capacity and a 4 Ticks NEA energy rating, this unit ensures efficient and climate-friendly cooling. Its customizable airflow patterns and optional 3D i-See Sensor provide personalized comfort, making it ideal for both commercial and residential use.

Key Features

• High Capacity Cooling: Experience powerful cooling with a capacity of 30,000 BTU, perfect for large spaces.
• Energy Efficient: Enjoy a 4 Ticks NEA rating, ensuring energy savings and eco-friendliness.
• Customizable Airflow: Offers individual vane angle settings and 2, 3, or 4-way airflow patterns for personalized comfort.
• Climate Friendly Refrigerant: Utilizes R32 refrigerant, which is environmentally friendly.
• Quiet Operation: Low noise levels with indoor sound levels ranging from 41dB(A) and outdoor sound level at 54dB(A).
• Powerful Performance: Delivers a cooling capacity of 7.6kW with a full load COP of 4.37.

Product Specifications

• Model Number
  • SUYM80VA/PLYM80EA-WIRED
• Type: Cassette Air Conditioner
• Capacity: 7.6(8.9)kW / 30000 BTU
• Power Input: 1.76kW
• Full Load COP: 4.37
• Energy Labelling Scheme: 4 Ticks
• Refrigerant Gas: R32
• Airflow: 17-21-25-29 CMM (m³/min)
• Indoor Dimension: 840x840x298mm
• Outdoor Dimension: 840x330x880mm
• Net Weight (Indoor): 24kg
• Net Weight (Outdoor): 43kg
• Indoor Sound Level (Silent-High): 27-32-37-41 dB(A)
• Outdoor Sound Level: 54 dB(A)
• Connection Method: Flared
• External Piping (Gas): 15.88mm
• External Piping (Liquid): 9.52mm
• Piping Length (Max): 30m
• Piping Height (Max): 15m
• Power Supply: 230V, 1 Phase, 50Hz

Ideal For

The Mitsubishi Cassette Aircon SUYM80VA/PLYM80EA-WIRED is ideal for commercial spaces such as offices, retail stores, and large residential areas that require efficient and powerful air conditioning solutions. It is perfect for those seeking a climate-friendly and energy-efficient cooling system with customizable airflow patterns.

In the Box

• Outdoor Unit: PLYM80EA
• Indoor Unit: 1x SUYM80VA
• Wired Remote Controller
• Installation Manual

Product Description

The Mitsubishi Cassette Aircon SUYZM50VA/PLYZM50EA-WIRED is a top-tier cooling solution for commercial spaces. With its advanced inverter technology and environmentally friendly R32 refrigerant, it offers efficient and powerful cooling while minimizing energy consumption. Ideal for large rooms and commercial environments, this air conditioner ensures comfort and peace with its quiet operation.

Key Features

• Efficient Cooling: Experience powerful cooling with a capacity of 5.1kW, perfect for large spaces.
• Energy Efficient: Rated with 5 Ticks NEA Energy Star, ensuring lower electricity bills.
• Advanced Technology: Features inverter technology for consistent and efficient performance.
• Flexible Airflow: Offers 2, 3, or 4-way airflow patterns for optimal comfort.
• Environmentally Friendly: Uses R32 refrigerant, reducing environmental impact.
• Quiet Operation: Operates with minimal noise, ensuring a peaceful environment.

Product Specifications

• SUYZM50VA/PLYZM50EA
  • Function & Type: Cooling, Ceiling Cassette
  • Capacity (Rated/Max): 5.1 (5.7) kW
  • Power Input: 1.03 kW
  • Full Load COP: 4.97
  • Weighted COP: 5.99
  • Running Current: 4.80 A
  • Airflow: 14-17-20-23 CMM (m³/min)
  • Dimension (Indoor): 840x840x298 mm
  • Dimension (Outdoor): 800x285x714 mm
  • Net Weight (Indoor): 27 kg
  • Net Weight (Outdoor): 35 kg
  • Indoor Sound Level (Silent-High): 23-27-31-35 dB(A)
  • Outdoor Sound Level: 48 dB(A)
  • Connection Method: Flared
  • External Piping (Gas): 15.88 mm
  • External Piping (Liquid): 9.52 mm
  • Piping Length (Max): 20 (30) m
  • Piping Height (Max): 12 m
  • Power Supply: 230V, 1 Phase, 50Hz
  • Energy Labelling Scheme: i516/1910 kWh

Ideal For

This Mitsubishi Cassette Air Conditioner is ideal for commercial spaces and large rooms, providing efficient cooling with its advanced inverter technology. Perfect for offices, retail spaces, and other commercial environments.

In the Box

• Outdoor Unit: SUYZM50VA
• Indoor Unit: PLYZM50EA
• Remote Control
• Installation Manual
• Warranty Card

Product Description

The Mitsubishi Cassette Aircon PUYM125VKA/PLYM125EA-Wireless is designed for commercial use, providing efficient and quiet cooling with a sleek, compact design. Ideal for large spaces, it ensures comfort and energy savings.

Key Features

• Efficient Cooling: Experience powerful cooling with a rated capacity of 11.4 kW, perfect for large spaces.
• Energy Saving: With a Full Load COP of 3.78 and Weighted COP of 4.82, enjoy reduced energy consumption.
• Quiet Operation: Indoor sound levels range from 39-46 dB(A), ensuring a peaceful environment.
• Flexible Installation: Maximum piping length of 50m and height of 30m for versatile setup.
• Compact Design: Indoor unit dimensions of 840x840x298mm, fitting seamlessly into any space.
• Reliable Performance: Operates on a 230V power supply with a running current of 13.70A.

Product Specifications

• PUYM125VKA/PLYM125EA
  • Function & Type: Cooling, Ceiling Cassette
  • Capacity (Rated/Max): 11.4 (14.0) kW
  • Power Input: 3.02 kW
  • Full Load COP: 3.78
  • Weighted COP: 4.82
  • Running Current: 13.70 A
  • Airflow: 26-29-32-34 CMM (m³/min)
  • Dimension (Indoor): 840x840x298 mm
  • Dimension (Outdoor): 1050x330x981 mm
  • Net Weight (Indoor): 27 kg
  • Net Weight (Outdoor): 63 kg
  • Indoor Sound Level (Silent-High): 39-41-44-46 dB(A)
  • Outdoor Sound Level: 55 dB(A)
  • Connection Method: Flared
  • External Piping (Gas): 15.88 mm
  • External Piping (Liquid): 9.52 mm
  • Piping Length (Max): 50 m
  • Piping Height (Max): 30 m
  • Power Supply: 230V, 1 Phase, 50Hz
  • Energy Labelling Scheme: i1473/5455 kWh

Ideal For

This Mitsubishi Cassette Aircon is ideal for commercial spaces, offering efficient cooling for offices, retail stores, and other large areas.

In the Box

• Outdoor Unit: PUYM125VKA
• Indoor Unit: PLYM125EA

Product Description

The Mitsubishi Cassette Aircon SUYM100VA/PLYM100EA-Wireless is a top choice for commercial cooling solutions. With its powerful 9.5 kW capacity, energy-efficient operation, and quiet performance, it ensures a comfortable environment in large spaces. Its compact design and flexible installation options make it a versatile choice for various settings.

Key Features

• Efficient Cooling: Provides powerful cooling with a capacity of 9.5 kW, perfect for large commercial spaces.
• Energy Saving: Features a high COP of 4.61, ensuring energy-efficient operation.
• Quiet Operation: Operates quietly with indoor sound levels ranging from 32 to 44 dB(A).
• Compact Design: Sleek and compact indoor unit dimensions of 840x840x298 mm.
• Flexible Installation: Supports a maximum piping length of 30 meters and height of 15 meters.
• Reliable Performance: Built with high-quality components for long-lasting performance.

Product Specifications

• SUYM100VA/PLYM100EA
  • Function & Type: Cooling, Ceiling Cassette
  • Capacity (Rated/Max): 9.5 (11.3) kW
  • Power Input: 2.51 kW
  • Full Load COP: 3.78
  • Weighted COP: 4.61
  • Running Current: 11.60 A
  • Airflow: 21-25-28-32 CMM (m³/min)
  • Dimension (Indoor): 840x840x298 mm
  • Dimension (Outdoor): 840x330x880 mm
  • Net Weight (Indoor): 27 kg
  • Net Weight (Outdoor): 43 kg
  • Indoor Sound Level (Silent-High): 32-37-41-44 dB(A)
  • Outdoor Sound Level: 54 dB(A)
  • Connection Method: Flared
  • External Piping (Gas): 15.88 mm
  • External Piping (Liquid): 9.52 mm
  • Piping Length (Max): 30 m
  • Piping Height (Max): 15 m
  • Power Supply: 230V, 1 Phase, 50 Hz

Ideal For

This Mitsubishi Cassette Aircon is ideal for commercial spaces, providing efficient cooling for large areas such as offices, retail stores, and restaurants.

In the Box

• Indoor Unit: SUYM100VA
• Outdoor Unit: PLYM100EA
• Wireless Remote Control
• Installation Manual

Product Description

The Mitsubishi Cassette Aircon SUYM80VA/PLYM80EA-Wireless is a top-tier cooling solution for commercial and large residential spaces. With its powerful 30000 BTU capacity and energy-efficient design, it provides exceptional cooling while reducing energy costs. Its quiet operation and advanced filtration system make it an ideal choice for maintaining a comfortable and clean environment.

Key Features

• Powerful Performance: Efficiently cools large spaces with a 30000 BTU capacity, ensuring comfort in every corner.
• Energy Efficiency: Designed to minimize energy consumption, helping to reduce electricity bills.
• Quiet Operation: Whisper-quiet technology makes it perfect for bedrooms and offices.
• Advanced Filtration System: Captures dust, allergens, and pollutants for cleaner air.
• Easy Control: User-friendly controls with customizable settings for personalized comfort.
• Durable and Reliable: Built for long-lasting use, ensuring peace of mind.

Product Specifications

• SUYM80VA/PLYM80EA
  • Function & Type: Cooling, Ceiling Cassette
  • Capacity (Rated/Max): 7.6 (8.9) kW
  • Power Input: 1.76 kW
  • Full Load COP: 4.37
  • Weighted COP: 5.42
  • Running Current: 8.10 A
  • Airflow: 17-21-25-29 CMM (m³/min)
  • Dimension (Indoor): 840 x 840 x 298 mm
  • Dimension (Outdoor): 840 x 330 x 880 mm
  • Net Weight (Indoor): 24 kg
  • Net Weight (Outdoor): 43 kg
  • Indoor Sound Level (Silent-High): 27-32-37-41 dB(A)
  • Outdoor Sound Level: 54 dB(A)
  • Connection Method: Flared
  • External Piping (Gas): 15.88 mm
  • External Piping (Liquid): 9.52 mm
  • Piping Length (Max): 30 m
  • Piping Height (Max): 15 m
  • Power Supply: 230V, 1 Phase, 50Hz
  • Energy Labelling Scheme: i858/3177 kWh

Ideal For

This Mitsubishi Cassette Aircon is ideal for commercial spaces, large rooms, and offices where efficient cooling is required. Its quiet operation makes it suitable for environments where noise reduction is important.

In the Box

• Outdoor Unit: SUYM80VA
• Indoor Unit: PLYM80EA
• Remote Control
• Installation Manual
• Warranty Card

Product Description

The Mitsubishi Cassette Aircon SUYZM50VA/PLYZM50EA-Wireless is a top-tier cooling solution for commercial spaces. With its efficient cooling capacity, energy-saving features, and quiet operation, it ensures comfort and convenience. Its sleek ceiling cassette design fits seamlessly into any environment, making it a perfect choice for modern interiors.

Key Features

• Efficient Cooling: Experience powerful cooling with a capacity of 5.1 kW, perfect for maintaining comfort in large spaces.
• Energy Saving: Equipped with a high-performance compressor and R32 refrigerant, offering up to 10% electricity savings.
• Quiet Operation: Enjoy a peaceful environment with indoor sound levels as low as 23 dB(A).
• Compact Design: Ceiling cassette type that blends seamlessly into any interior.
• Durable Build: Built with high-quality materials for long-lasting performance.
• Eco-Friendly: Uses R32 refrigerant with a low GWP value, ensuring minimal environmental impact.

Product Specifications

• Model: PLY-ZM50EA/SUY-ZM50VA
  • Function & Type: Cooling, Ceiling Cassette
  • Capacity (Rated/Max): 5.1 (5.7) kW
  • Power Input: 1.03 kW
  • Full Load COP: 4.97
  • Weighted COP: 5.99
  • Running Current: 4.80 A
  • Airflow: 14-17-20-23 CMM (m³/min)
  • Dimension (Indoor): 840 x 840 x 298 mm
  • Dimension (Outdoor): 800 x 285 x 714 mm
  • Net Weight (Indoor): 27 kg
  • Net Weight (Outdoor): 35 kg
  • Indoor Sound Level (Silent-High): 23-27-31-35 dB(A)
  • Outdoor Sound Level: 48 dB(A)
  • Connection Method: Flared
  • External Piping (Gas): 15.88 mm
  • External Piping (Liquid): 9.52 mm
  • Piping Length (Max): 20 (30) m
  • Piping Height (Max): 12 m
  • Power Supply: 230V, 1 Phase, 50 Hz
  • Energy Labelling Scheme: i516/1910 kWh

Ideal For

This Mitsubishi Cassette Aircon is ideal for commercial spaces such as offices, retail stores, and restaurants, providing efficient cooling with its ceiling cassette design.

In the Box

• Outdoor Unit: SUY-ZM50VA
• Indoor Unit: PLY-ZM50EA

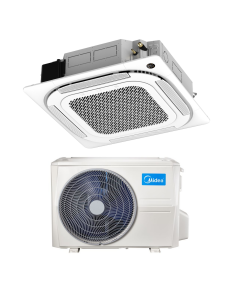

Transform your space with the Midea Cassette Aircon 48,000 BTU - 3 Phase, a high-capacity cooling solution designed for efficiency and comfort. Available at Gain City, this robust aircon unit offers superior climate control for large spaces, ensuring a comfortable environment in Singapore's tropical climate.

Key Features:

• High Cooling Capacity: 48,000 BTU, perfect for cooling large areas efficiently.
• Energy Efficiency: Equipped with a 3-phase power supply for optimal energy consumption.
• Advanced Technology: Utilises R32 refrigerant gas, known for its lower environmental impact.
• Breezeless Comfort: Enjoy a cool environment without the discomfort of cold drafts.
• 360° Air Flow: Ensures even distribution of cool air throughout the room.
• Anti-corrosion Water Tray: Enhances durability and prolongs the life of the aircon unit.

Whether you're upgrading your office space or ensuring your home stays comfortable year-round, the Midea Cassette Aircon from Gain City is a reliable choice. With its advanced features and efficient performance, it's an investment in comfort and quality.
